LL-DDLP
c2432ca13fb646310b002f801a66b02d.pngLL-DDLP

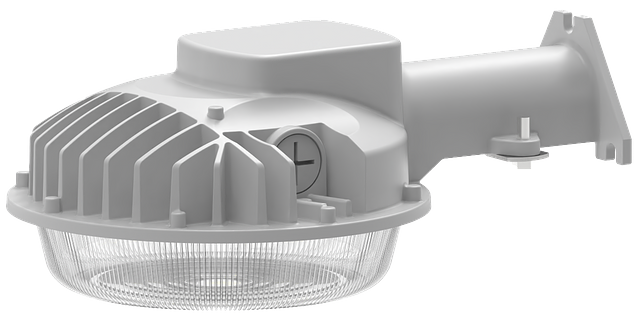

LED Dusk To Dawn Low Power
The LITELUME™ Dusk to Dawn Low Power (LL-DDLP) is a multipurpose luminaire delivering ultra efficient lighting. Featuring field selectable lumens & color temperature, lightweight design, and 3G vibration rated construction.
Applications: Roadways, Yards, Loading Docks, Multi-family, Community and general site illumination.
Resources
Die-cast Aluminum
Durable Protective Powder Coat
High Impact Polycarbonate Lens
3G vibration Rated
IP 66 Rated
Durable Protective Powder Coat
High Impact Polycarbonate Lens
3G vibration Rated
IP 66 Rated
Premium LED's
Ultra efficient driver
PF .95
CRI 80
THD <20%
Standard 0-10v Dimming, 10 - 100% Range
Field Selectable Lumens 1,403 to 4,209 lm
Field Selectable CCT
Ultra efficient driver
PF .95
CRI 80
THD <20%
Standard 0-10v Dimming, 10 - 100% Range
Field Selectable Lumens 1,403 to 4,209 lm
Field Selectable CCT
QuickShip Ordering Information
LL-DDLP-4L-UNV-SCT-SP-GY-PC
LED Barn Light
LL-DDLP-4L-UNV-SCT-SP-GY-PC
LED Barn Light
Lumens
- 1403 Lm
- 2806 Lm
- 4209 Lm
Watts
- 10 w
- 20 w
- 30 w
CRI
- 80 CRI
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Gray
- White
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Efficacy
- 140 lm/w
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- Exterior
- IP66
- Wet
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
