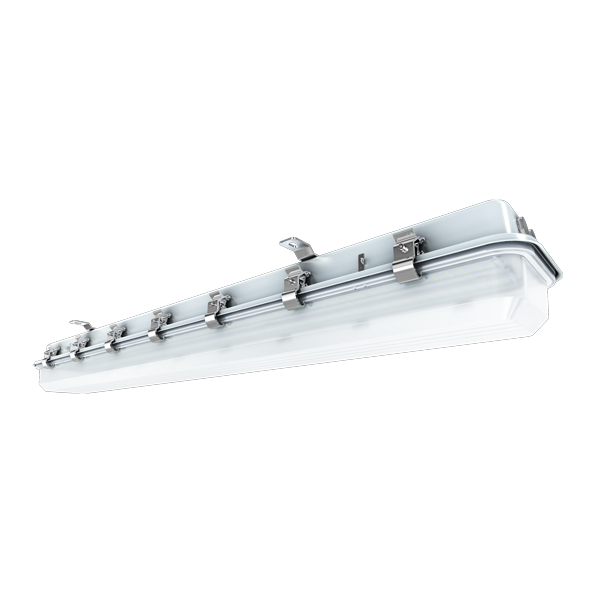

LL-SML24HLLL-SML24HL
LED Surface Mount Linear 24" Hazardous Location
The LITELUME™ Surface Mount Linear 24" Hazardous Location (LL-SML24HL) Class 1, Division 2 series wall and ceiling mount luminaire is available with clear or LumaLens lenses and open door frame designed to replace HID lighting systems from 175w to 250w MH or HPS. Typical lighting applications include industrial facilities, oil, gas, painting facilities, and auto service facilities. Mounting heights of 12 to 25 feet can be used based on light level and uniformity requirements.
Resources
Die-cast Aluminum Housing
Powder Coat Finish Over a Chromate Conversion Coating
Standard Clear UV-Stabilized Polycarbonate Lens
Optional SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens
Powder Coat Finish Over a Chromate Conversion Coating
Standard Clear UV-Stabilized Polycarbonate Lens
Optional SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens
Premium LED's
Premium Driver
PF .90
CRI 80
THD <20%
Efficacy up to 134 lm/W
NEMA 4X
IP66
ETL Listed for Hazardous Locations Per UL844
Class 1, Division 2 Groups A, B, C, D
T4 Temperature Rating, -25°C to +50°C Ambient.
Suitable for Wet Locations
Sealed LED Compartment
138,000 hrs @ 25ºC
Premium Driver
PF .90
CRI 80
THD <20%
Efficacy up to 134 lm/W
NEMA 4X
IP66
ETL Listed for Hazardous Locations Per UL844
Class 1, Division 2 Groups A, B, C, D
T4 Temperature Rating, -25°C to +50°C Ambient.
Suitable for Wet Locations
Sealed LED Compartment
138,000 hrs @ 25ºC
QuickShip Ordering Information
LL-SML24HL-47-50-UNV-GY
LL-SML24HL-47-40-UNV-GY
LL-SML24HL-66-50-UNV-GY
LL-SML24HL-66-40-UNV-GY
LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
LED Hazardous Lights
LL-SML24HL-47-40-UNV-GY
LL-SML24HL-66-50-UNV-GY
LL-SML24HL-66-40-UNV-GY
LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
LED Hazardous Lights
Lumens
- 7017 Lm
- 7309 Lm
- 9882 Lm
- 10294 Lm
Watts
- 47 w
- 66 w
Beam Angle
- 115
CRI
- 80 CRI
CCT
- 4000K
- 5000K
Color / Finish
- Gray
Efficacy
- 134 lm/w
Industrial Type
- Hazardous Location
Lamp Life
- 62000 hrs
Lamp Source
- LED
Listings
- ETL
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- Buy American Act (BAA)
- Class I Div II
- IP66
- Industrial
- Marine
- NEMA 4X
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 347-480 V
- UNV
Warranty
- 10 yr
