LL-HBLE
LL-HBLE-SURFACE MOUNT.pngLL-HBLE

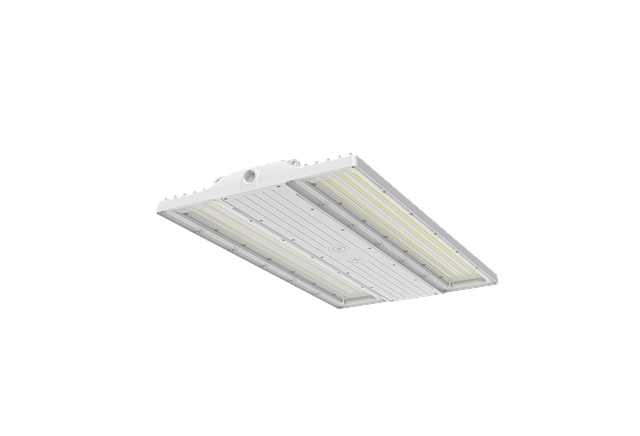

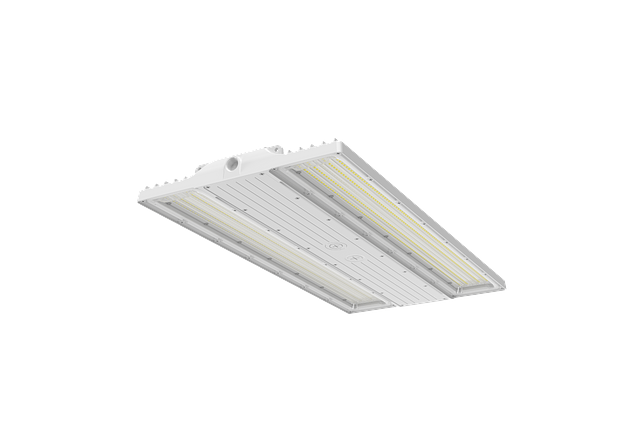

LED Highbay Linear Elite Series
The LITELUME™ LED High Bay Linear Elite (LL-HBLE) Features the most up to date new technology, including field selectable color temperature, selectable power, and selectable beam angle distribution to accommodate medium, aisle or narrow distribution needs. This elite luminaire is constructed with a IP65, NSF rated die cast housing suitable for both indoor and outdoor use. Incorporating a stylish design while upholding maximum durability and reliability. Controls ready.
Applications include Education, Fitness Centers, Food Processing, Distribution Centers, Wet Locations, Grocery, Gymnasiums, Manufacturing Plants, and Warehouses.
Applications include Education, Fitness Centers, Food Processing, Distribution Centers, Wet Locations, Grocery, Gymnasiums, Manufacturing Plants, and Warehouses.
Resources
Robust Durable Sealed Die Cast Aluminum
Reliable Performance with Advanced Thermal Management
Protected Powder Coat
Polycarbonate Lens
IP65
NSF

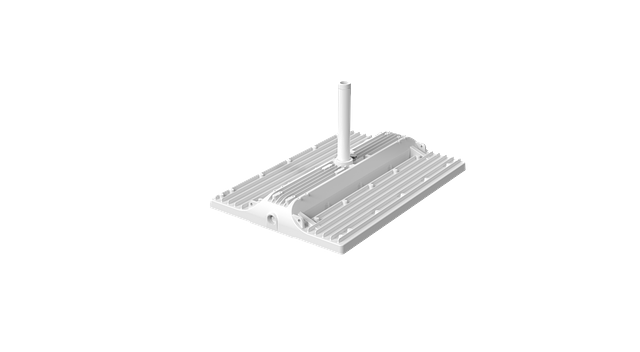

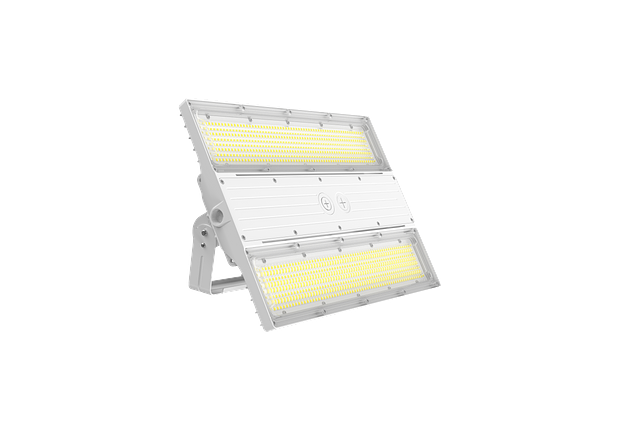

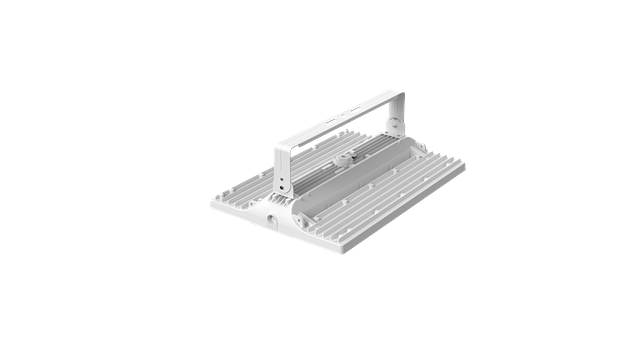

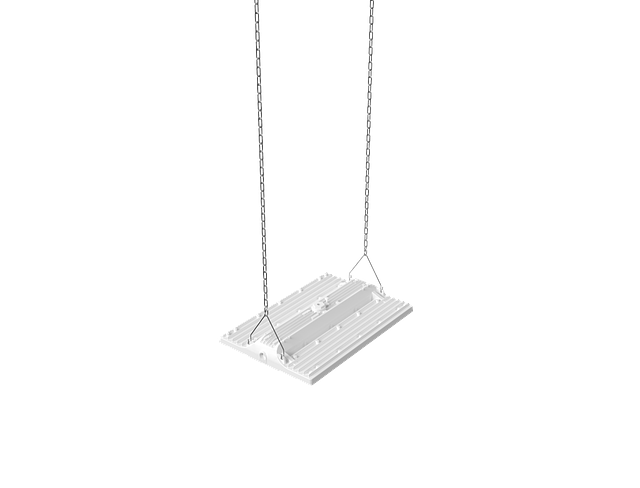

Simple installation with standard V Hook & Chain, 3/4 NPT Hub Standard Pendant Mount or Optional Surface Mount and Yoke Mount
Reliable Performance with Advanced Thermal Management
Protected Powder Coat
Polycarbonate Lens
IP65
NSF
Simple installation with standard V Hook & Chain, 3/4 NPT Hub Standard Pendant Mount or Optional Surface Mount and Yoke Mount
Premium LED's
Ultra efficient driver
Standard Surge protection 6kV
PF .90
CRI 80
THD <20%
High Efficacy up to 175 lm/W
Field Selectable Lumen Package 10.900 to 61,600 lm
Field Selectable Color Temperature 3500K/4000K/5000K
Field Selectable Distribution Beam Angles Narrow, Aisle and Medium
Universal 120-277V or 277-480V
0-10V dimming standard for a dimming range of 100% to 10%.
Controls Ready
Optional Emergency battery Backup
Ultra efficient driver
Standard Surge protection 6kV
PF .90
CRI 80
THD <20%
High Efficacy up to 175 lm/W
Field Selectable Lumen Package 10.900 to 61,600 lm
Field Selectable Color Temperature 3500K/4000K/5000K
Field Selectable Distribution Beam Angles Narrow, Aisle and Medium
Universal 120-277V or 277-480V
0-10V dimming standard for a dimming range of 100% to 10%.
Controls Ready
Optional Emergency battery Backup
IK10
NSF
IP65
IP69K
UL cUL wet location listed.
NSF
IP65
IP69K
UL cUL wet location listed.
Food zone, splash zone, and non-food zone.
QuickShip Ordering Information
LL-HBLE-27L-UNV-SCT-SP-SD-WH
LL-HBLE-32L-UNV-SCT-SP-SD-WH
LL-HBLE-44L-UNV-SCT-SP-SD-WH
LL-HBLE-51L-UNV-SCT-SP-SD-WH
LL-HBLE-54L-UNV-SCT-SP-SD-WH
LL-HBLE-63L-UNV-SCT-SP-SD-WH
LL-HBLE-44L-HV-SCT-SP-SD-WH
LL-HBLE-63L-HV-SCT-SP-SD-WH
Linear LED High Bay Lights
QuickShip Ordering Information
LL-HBLE-27L-UNV-SCT-SP-SD-WH
LL-HBLE-32L-UNV-SCT-SP-SD-WH
LL-HBLE-44L-UNV-SCT-SP-SD-WH
LL-HBLE-51L-UNV-SCT-SP-SD-WH
LL-HBLE-54L-UNV-SCT-SP-SD-WH
LL-HBLE-63L-UNV-SCT-SP-SD-WH
LL-HBLE-44L-HV-SCT-SP-SD-WH
LL-HBLE-63L-HV-SCT-SP-SD-WH
Linear LED High Bay Lights
Replaces 1000W MH/PSMH
Replaces 750W MH/PSMH
Replaces 575W MH/PSMH
Replaces 400W MH/PSMH
Replaces 320W MH/PSMH
Replaces 250W MH/PSMH
Replaces 175W MH/PSMH
Replaces 150W MH/PSMH
Replaces 100W MH/PSMH
Replaces 6 lamp T5H0
Replaces 4 lamp T5H0
Replaces 6 lamp T8
Replaces 4 lamp T8
Availability
- In Stock
- Quick Ship
Beam Angle
- 30
- 45
- 90
CRI
- 80
CCT
- Field Selectable CCT
- 3500K
- 4000K
- 5000K
Color / Finish
- White
Controls Options
- Bi-level Dimming
- Bluetooth
- Daylight Harvesting
- Daylight Occupancy Sensor
- Daylight Sensor
- Dimmable
- High Frequency Microwave
- Luminaire-Level Lighting Controls
- Microwave Sensor
- Motion Sensor
- Network Wireless Control
- Occupancy Sensor
- PIR Sensor
- Passive Infrared
- Synapse
- Wireless Control
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- Synapse
Distribution
- Medium
- Narrow/Aisle
Efficacy
- 175
Lamp Life
- 100000
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Bracket
- Ceiling
- Chain
- Pendant
- Suspended
- Yoke
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Exterior
- IK10
- IP65
- IP69K
- Interior
- NSF
- TAA
- Wet
Shape
- Rectangular
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
- 277-480 V
Warranty
- 10 yr
