LL-CDR10

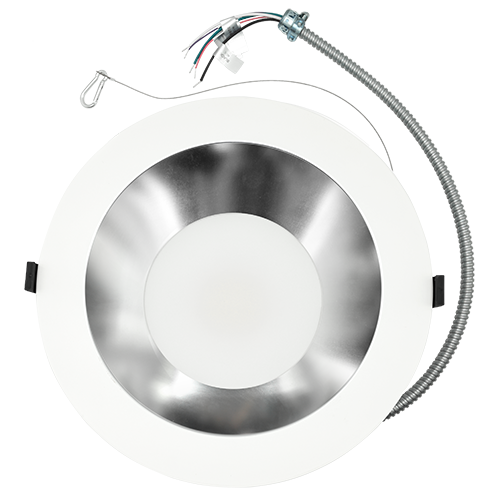

LL-CDR10-SW-BOTTOM.jpgLL-CDR10
LED 10” Commercial Architectural Round Downlight

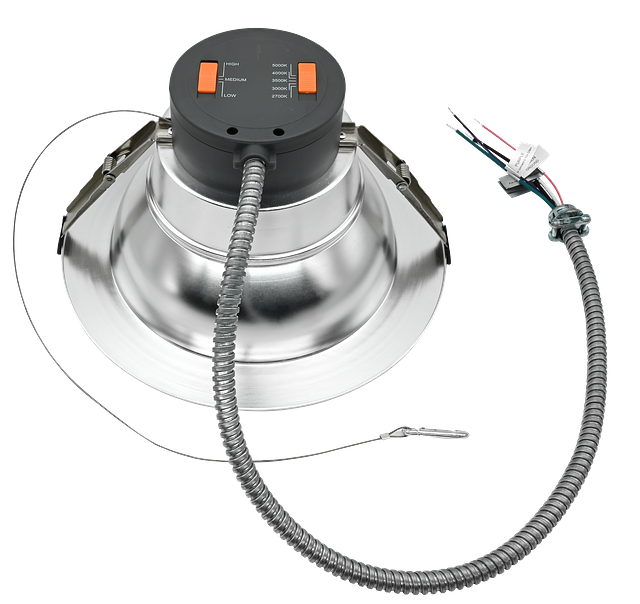

The LITELUME™ LL-CDR10 is perfect for new construction or retrofit. Featuring Field Selectable 3 level lumen output and 5 CCT options ranging from 2700K to 5000K to customize the light and offer maximum versatility. Available in white trim with specular silver reflector & optional black trim ring.
Resources
Premium Powder Coat
Aluminum White Housing
Polycarbonate diffuser
White trim with specular silver reflector

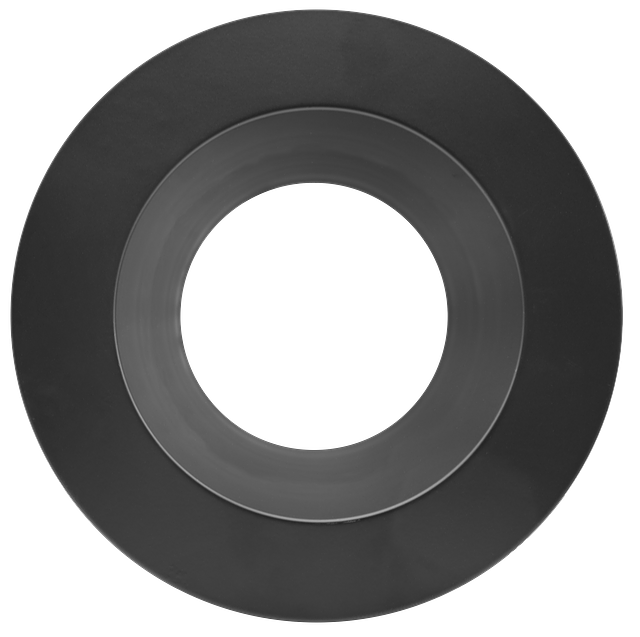

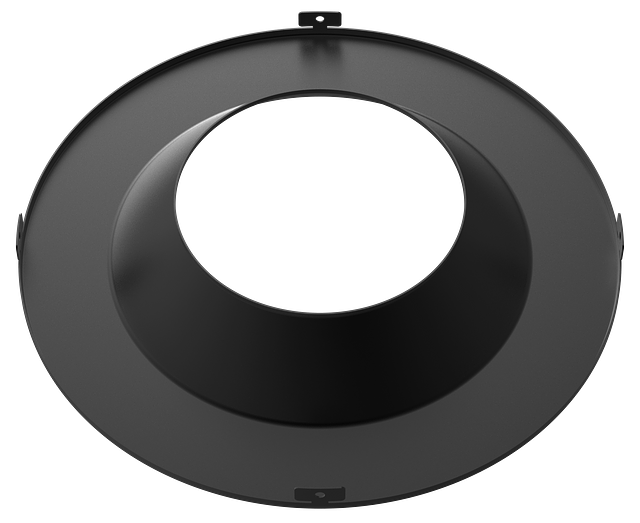

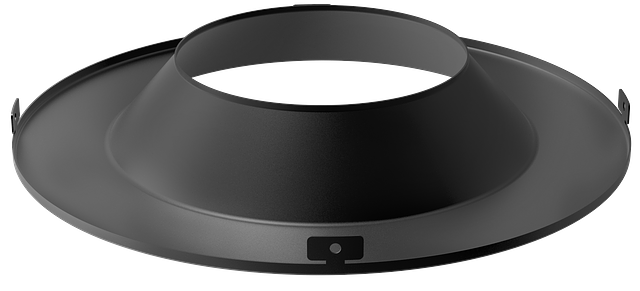

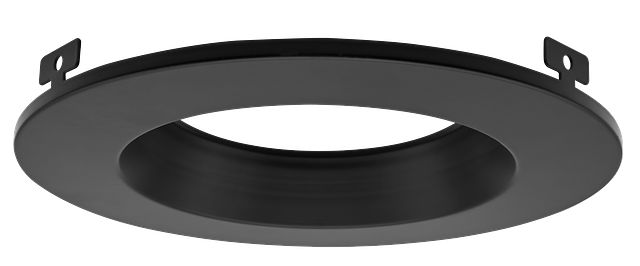

Optional black trim ring
21.65” flexible metal conduit with additional 6” of conductor is standard
Aluminum White Housing
Polycarbonate diffuser
White trim with specular silver reflector
Optional black trim ring
21.65” flexible metal conduit with additional 6” of conductor is standard
65° Beam
PF > 0.90.
THD < 20%
CRI 90
120-277v
0-10v Dimming
Surge Protection = 1kV
Operating Temperature -4°F to 113°F
cETLus listed for wet locations
Energy Star certified
Complies with FCC part 15, class B
Complies with Title 24
Type IC
Recessed in ceiling, new construction or retrofit
Access above ceiling required
Covered ceiling mount only
Compatible with 8.97” ceiling cut-outs and 10” mounting frames
LUTRON COMPATIBLE DIMMERS AND CONTROLS
RMJS-8T-DV-B
Diva DVSTV
MS-Z101-WH
DVSTV-WH
LEGRAND COMPATIBLE DIMMERS AND CONTROLS
RH4FBL3PW
Remote Mount EM Driver
LL-BLEM-INDRV-HV40W
THD < 20%
CRI 90
120-277v
0-10v Dimming
Surge Protection = 1kV
Operating Temperature -4°F to 113°F
cETLus listed for wet locations
Energy Star certified
Complies with FCC part 15, class B
Complies with Title 24
Type IC
Recessed in ceiling, new construction or retrofit
Access above ceiling required
Covered ceiling mount only
Compatible with 8.97” ceiling cut-outs and 10” mounting frames
LUTRON COMPATIBLE DIMMERS AND CONTROLS
RMJS-8T-DV-B
Diva DVSTV
MS-Z101-WH
DVSTV-WH
LEGRAND COMPATIBLE DIMMERS AND CONTROLS
RH4FBL3PW
Remote Mount EM Driver
LL-BLEM-INDRV-HV40W
QuickShip Ordering Information
LL-CDR10-5L-LKFS-SW
LL-CDR8-TR-BK
LL-BLEM-INDRV-HV40W
LL-CDR10-5L-LKFS-SW
LL-CDR8-TR-BK
LL-BLEM-INDRV-HV40W
Lumens
- 3000 Lm
- 4000 Lm
- 5000 Lm
Watts
- 32 w
- 42 w
- 48 w
Availability
- In Stock
- Quick Ship
CRI
- 90 CRI
CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Color / Finish
- White
Dimensions
- H: 6.01 In. L: 11.4 In. W: 11.4 In.
Dimming Protocol
- 0-10 V
Dimming Range
- 1%
Efficacy
- 102 lm/w
Installation Type
- New Construction
- Retrofit & Remodel
Lamp Life
- 149000 hrs
Lamp Source
- LED
Listings
- ETL
Materials
- Aluminum
- Polycarbonate
Emergency Options
- Remote EM Battery
Ratings & Compliance
- Energy Star
- Exterior
- FCC
- IC Rated
- Interior
- JA8
- Title 24
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Trim Finish
- White
Trim Type
- Reflector
Voltage
- 120-277 V
Warranty
- 10 yr
