LL-FLMAX
LL-FLMAX-SF.jpgLL-FLMAX

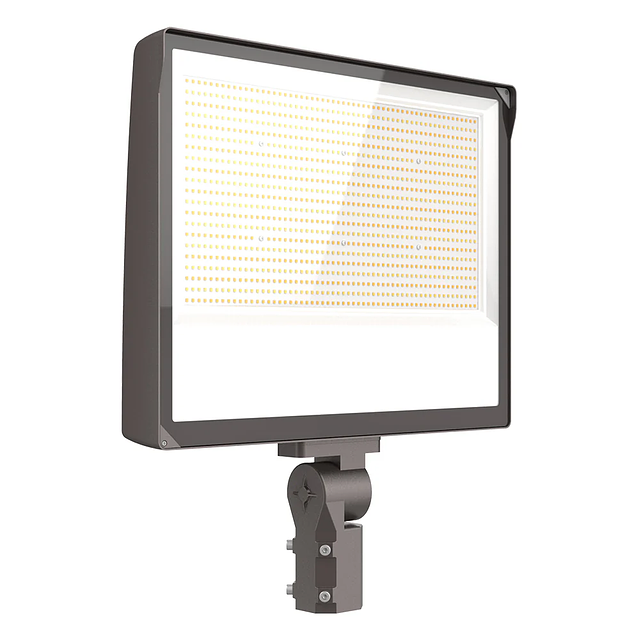

LED Floodlight Max
The LITELUMEā¢ Floodlight Max ( LL-FLMAX ) is a high performance LED solution designed with versatility and a slim, low profile design. The rugged, die-cast aluminum housing with UV resistant powder coat finish minimizes wind load requirements and features a Premium LED driver along with High Performance LED's.
Applications: Parking lots, Auto dealerships, Billboard, Facade, Wall Washing, Landscape, Tennis Courts, Basketball Courts, Stadiums, Arenas, General Sports, and general outdoor lighting.
Applications: Parking lots, Auto dealerships, Billboard, Facade, Wall Washing, Landscape, Tennis Courts, Basketball Courts, Stadiums, Arenas, General Sports, and general outdoor lighting.
Resources
Die-cast AluminumĀ
Heat & Impact resistant toughened glass
Durable Protective Powder CoatĀ
Heat & Impact resistant toughened glass
Durable Protective Powder CoatĀ
Premium LED's
Ultra efficient driver
PF .98
CRI 80
THD <20%
Standard 0-10v Dimming, 10 - 100% Range
Field Selectable Lumens 37,440 to 67,050 lm
Field Selectable CCT
Beam Angle: 118Āŗ
Ultra efficient driver
PF .98
CRI 80
THD <20%
Standard 0-10v Dimming, 10 - 100% Range
Field Selectable Lumens 37,440 to 67,050 lm
Field Selectable CCT
Beam Angle: 118Āŗ
QuickShip Ordering Information
LL-FLMAX-67L-UNV-SCT-SP-BZ-TR
Package:
Packing size: 24.61x6.26x20.28 inch
Weightļ¼ 27.46 LBS
Pallet size: 42x48x68 inch Qtyļ¼20pcs
Total Weight:580 LBS
LED High Powered Floodlights
Lumens
- 37440 Lm
- 53200 Lm
- 67050 Lm
Watts
- 240 w
- 350 w
- 450 w
Beam Angle
- 118
CRI
- 80 CRI
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
Dimensions
- H: 4.48 In. L: 23.5 In. W: 21.29 In.
Dimming Protocol
- 0-10 V
Efficacy
- 140 lm/w
Lamp Life
- 60000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Ratings & Compliance
- Exterior
- IP65
- Wet
Shape
- Square
Warranty
- 10 yr
Similar Products
In-Stock Collection
Outdoor Lighting Collection
LL-ALAEPTS

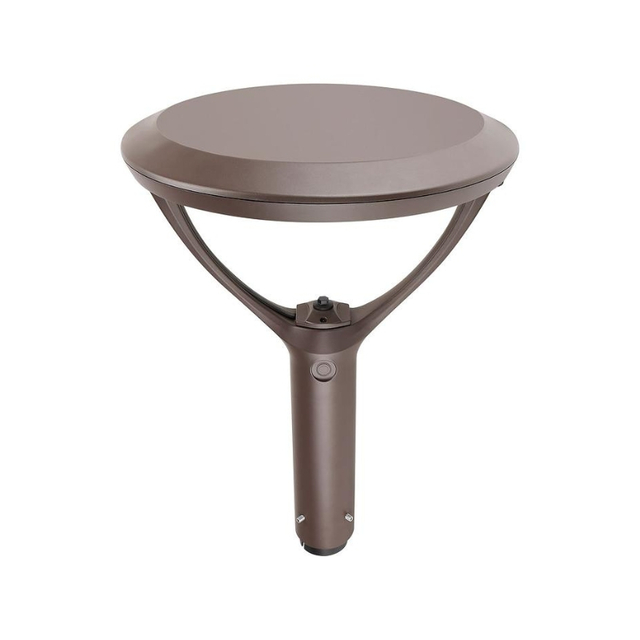

LED Amberlume Series Architectural Enclosed Post Top Small
