LL-PTLP

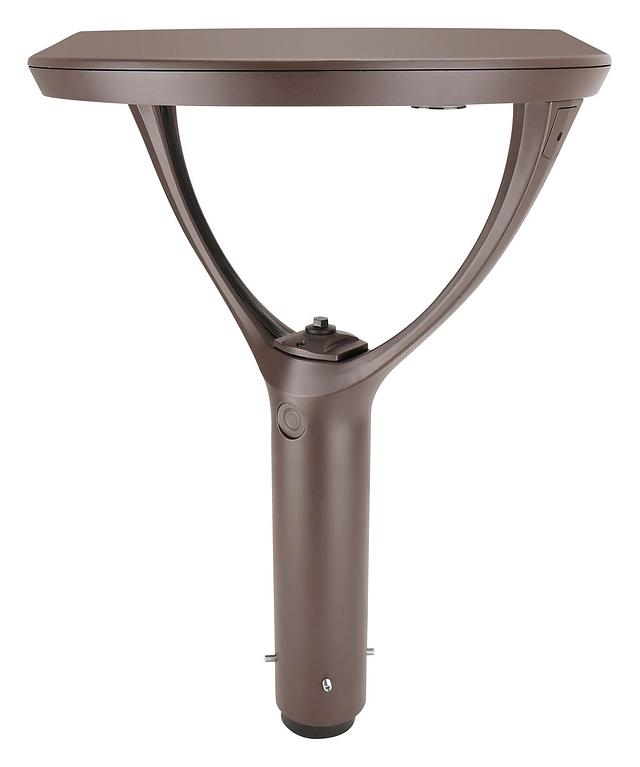

LL-PTLP-SIDE.jpgLL-PTLP

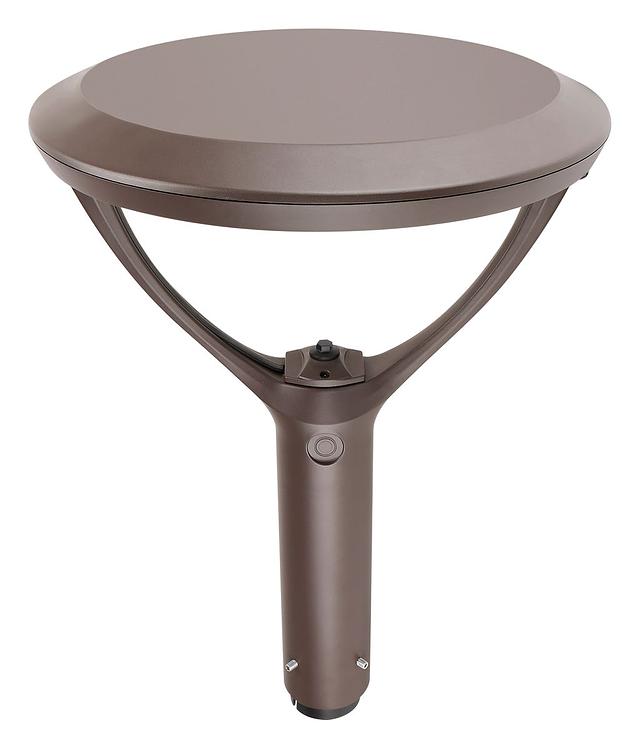

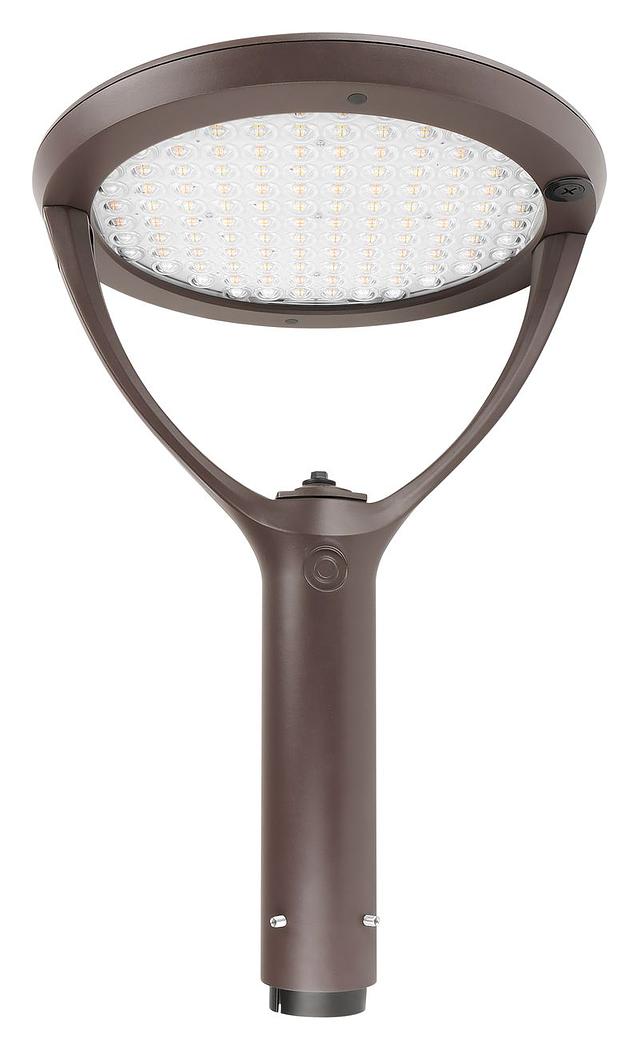

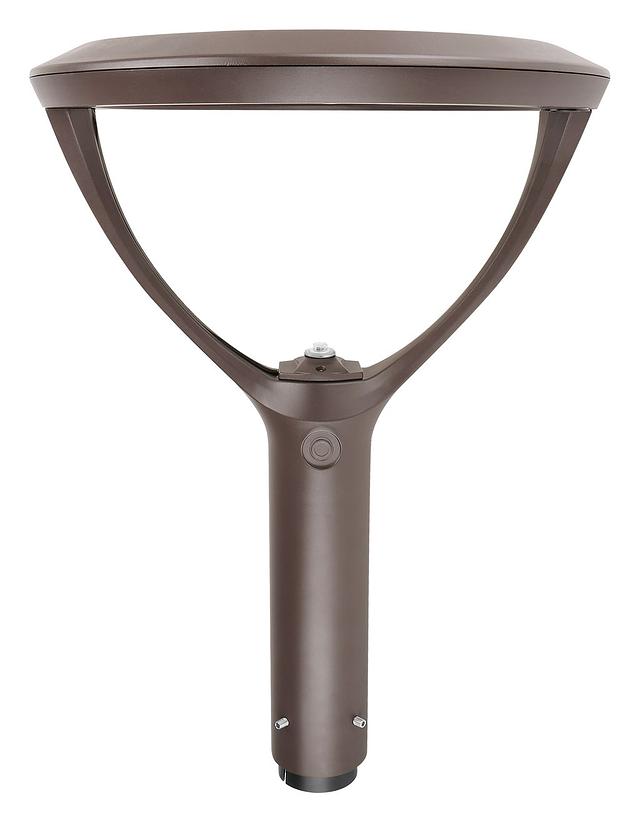

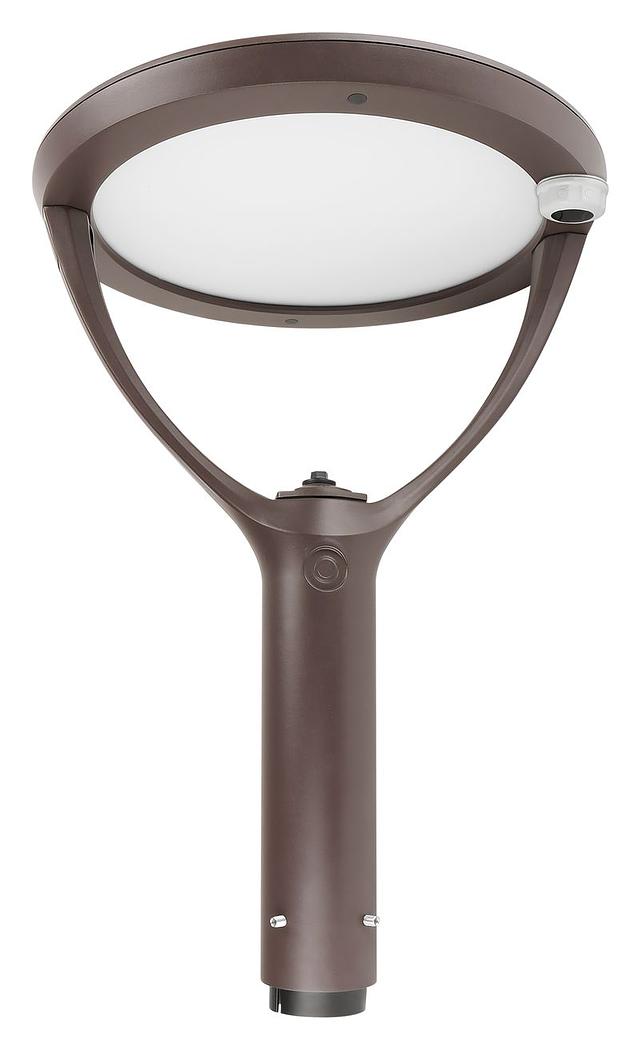

LED Post Top Luminaire Premier
The LITELUME™ Area Light Post Top Luminaire Premier (LL-PTLP) brings an elegant aesthetic appeal combining beauty and performance with it’s fresh urban style. Featuring a die-cast aluminum housing with outstanding corrosion protection. Compact in design low profile dark sky rated with soft light.
Suitable for mounting heights of 8-25’ makes this an excellent choice for pathway, walkway, municipality and general lighting applications.
Suitable for mounting heights of 8-25’ makes this an excellent choice for pathway, walkway, municipality and general lighting applications.
Resources
Die-cast Aluminum
Protective Powder Coat
UV Polycarbonate lens
Protective Powder Coat
UV Polycarbonate lens
3G vibration rated
IP 66 Rated
Tenon slides over to fir 2 3/8” - 3" OD
EPA 0.34
Frosted diffuser with 120 Degree General Distribution or Type 3/4/5 Field Selectable
IP 66 Rated
Tenon slides over to fir 2 3/8” - 3" OD
EPA 0.34
Frosted diffuser with 120 Degree General Distribution or Type 3/4/5 Field Selectable
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
7,200 - 20,000 lm
Surge Protection 6Kv
Operating Temperature -40 ̊F - + 104 ̊F
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
7,200 - 20,000 lm
Surge Protection 6Kv
Operating Temperature -40 ̊F - + 104 ̊F
QuickShip Ordering Information
LL-PTLP-20L-UNV-SCT-SP-F-BZ-PC
LL-PTLP-20L-UNV-SCT-SP-SD-BZ-PC
LL-PTLP-20L-UNV-SCT-SP-F-BK-PC
LL-PTLP-20L-UNV-SCT-SP-F-WH-PC
LL-PTLP-20L-UNV-SCT-SP-F-BZ-PC
LL-PTLP-20L-UNV-SCT-SP-SD-BZ-PC
LL-PTLP-20L-UNV-SCT-SP-F-BK-PC
LL-PTLP-20L-UNV-SCT-SP-F-WH-PC
Watts
- 52
- 78
- 104
- 130
Availability
- In Stock
- Quick Ship
Beam Angle
- 120
CRI
- 80
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- Dark Green
- Gray
- White
Controls Options
- Occupancy Sensor
- Photocell
- Synapse
Dimming Protocol
- 0-10 V
Distribution
- Type 3
- Type 4
- Type 5
Efficacy
- 160
Lamp Life
- 100000
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- Buy American Act (BAA)
- DarkSky Approved
- Exterior
- IP66
- Title 24
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
- 480 V
Warranty
- 10
EPA Rating
- .34
