Resources

ADC12A High Pressure Die-cast Aluminum-Silicon-Copper Housing
Powder Coat Finish Over a Chromate Conversion Coating
Clear Tempered Glass
Silicone Rubber Gasket
Stainless steel 304 Hardware
3G Vibration Rated
Top Opening 3/4 NPT Standard
Ceiling, Wall Mount with Standard U-Bracket, optional Suspended Mount, and Pole Mount

Premium LED's
Premium Meanwell Driver
PF .95
CRI 80
THD <20%
High Efficacy up to 130 lm/W
Standard 0-10v Dimming
NEMA 4X
IP66
IK10
UL1598 and UL1598A
UL844
CSA C22.2 No.137/No.250.0
Class 1, Division 2, Groups A, B, C, D
Class 2, Division 2, Groups F, G
Class 3
Marine and Wet Locations
Vibration 3G
Salt Spray 500 Hours

QuickShip Ordering Information

Built to order Information
8 Weeks

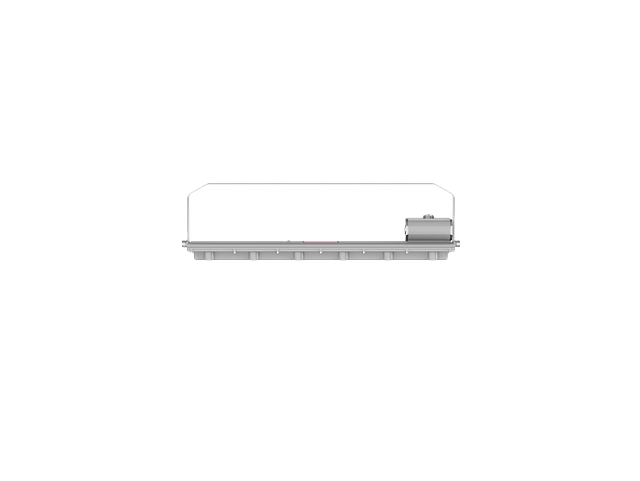

Package: LL-LHTHL-2 ( 2' )
Package Size: 26.57x7.68x9.25 inch
Weight: 7.47 LBS (1 PCS)

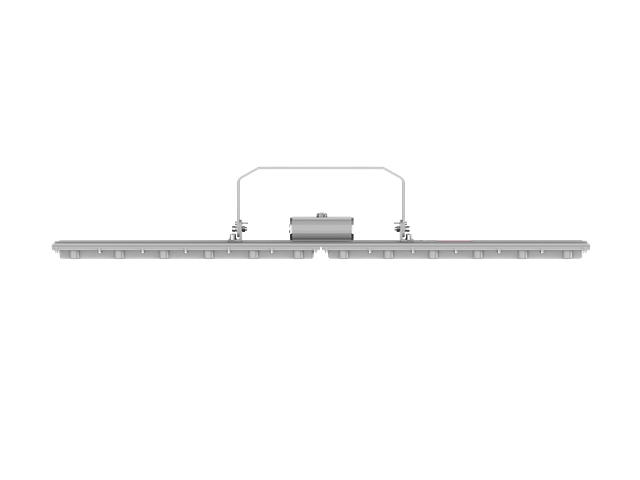

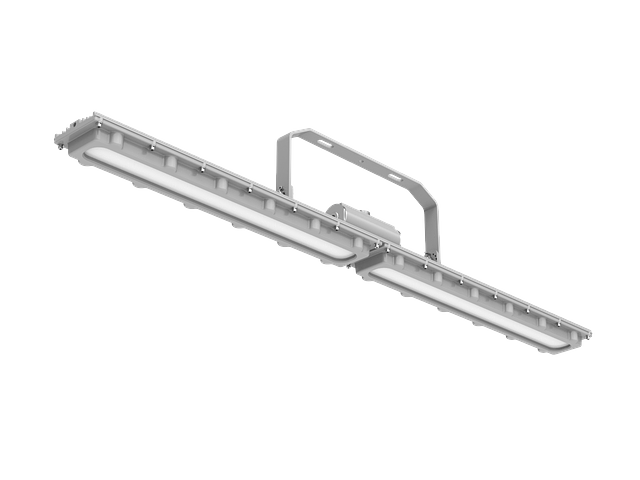

Package: LL-LHTHL-4 ( 4' )
Package Size: 48.78x7.48x9.06 inch
Weight: 15.21LBS (1 PCS)

LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
