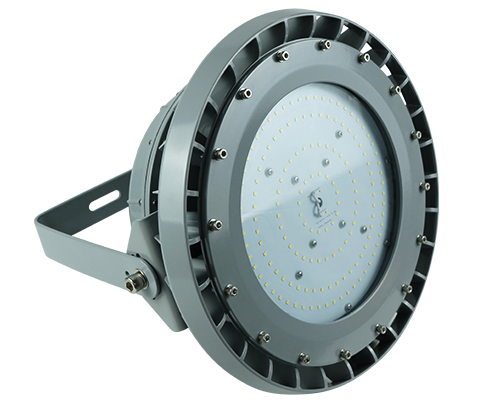

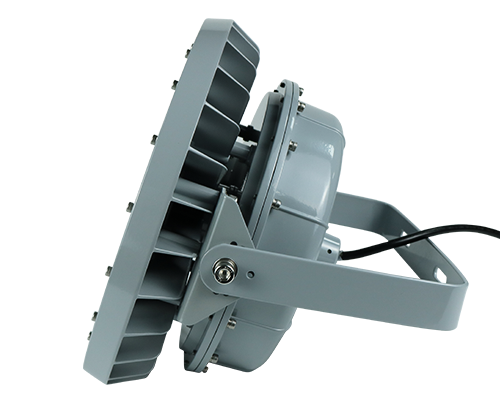

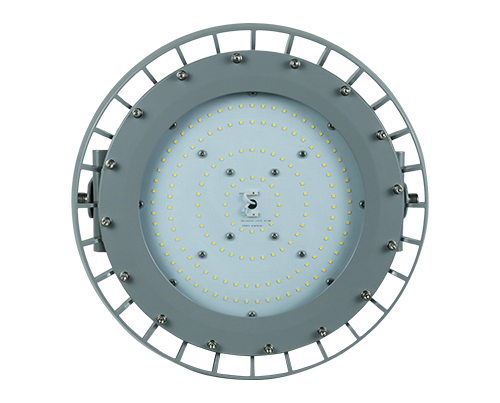

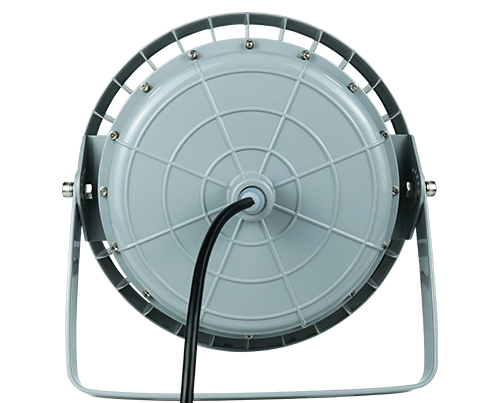

LED High Bay Round UFO Explosion Proof
The LITELUME™ High Bay Round UFO Explosion Proof (LL-HBRUEP) Class 1, Division 1 Luminaire is available with a clear tempered glass lens. Typical lighting applications include industrial facilities, marine vessels, mining, chemical production & processing, oil & gas refineries and high humidity, dust and temperature facilities.
Resources
Die-cast Aluminum Housing
Powder Coat Finish Over a Chromate Conversion Coating
Clear Tempered Glass
Stainless steel 304 Hardware
3G Vibration Rated
Top Opening 3/4 NPT Standard ( Optional M25 )
Side Openings 3/4 NPT Standard ( Optional M20, M25, 1/2 NPT )
Powder Coat Finish Over a Chromate Conversion Coating
Clear Tempered Glass
Stainless steel 304 Hardware
3G Vibration Rated
Top Opening 3/4 NPT Standard ( Optional M25 )
Side Openings 3/4 NPT Standard ( Optional M20, M25, 1/2 NPT )
Premium LED's
Premium Meanwell Driver
PF .90
CRI 80
THD <20%
High Efficacy up to 140 lm/W
Standard 0-10v Dimming
NEMA 4X
IP66
IK10
UL1598 and UL1598A
UL844
CSA C22.2 No.137/No.250.0
Class l, Division 1, Groups C, D
Class l, Division 2, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 2, Division 2, Groups E, F, G
Class 3
Marine and Wet Locations
IECEX
ATEX
Premium Meanwell Driver
PF .90
CRI 80
THD <20%
High Efficacy up to 140 lm/W
Standard 0-10v Dimming
NEMA 4X
IP66
IK10
UL1598 and UL1598A
UL844
CSA C22.2 No.137/No.250.0
Class l, Division 1, Groups C, D
Class l, Division 2, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 2, Division 2, Groups E, F, G
Class 3
Marine and Wet Locations
IECEX
ATEX
QuickShip Ordering Information
LL-HBRUEP-60-50-UNV-GY
LL-HBRUEP-80-50-UNV-GY
LL-HBRUEP-80-50-UNV-GY
LL-HBRUEP-100-50-UNV-GY
LL-HBRUEP-150-50-UNV-GY
LL-HBRUEP-250-50-UNV-GY
HM
WMA90JB
WMA25JB
JB
PM12
PMB12
SC
SM
Package: 20w - 80w
Package Size: 18.50x18.50x13.58 inch
Weight: 35.27 LBS (1 PCS)
Package: 100w - 150w
Package Size: 21.65x20.47x14.17 inch
Weight: 41.89 LBS (1 PCS)
Package: 200w - 280w
Package Size: 21.85x21.85x13.58 inch
Weight: 55.12 LBS (1 PCS)
LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
LED Explosion Proof Lights
LED Hazardous Lights
HM
WMA90JB
WMA25JB
JB
PM12
PMB12
SC
SM
Package: 20w - 80w
Package Size: 18.50x18.50x13.58 inch
Weight: 35.27 LBS (1 PCS)
Package: 100w - 150w
Package Size: 21.65x20.47x14.17 inch
Weight: 41.89 LBS (1 PCS)
Package: 200w - 280w
Package Size: 21.85x21.85x13.58 inch
Weight: 55.12 LBS (1 PCS)
LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
LED Explosion Proof Lights
LED Hazardous Lights
Lumens
- 2800 Lm
- 8400 Lm
- 14000 Lm
- 21000 Lm
- 28000 Lm
- 39200 Lm
Watts
- 20 w
- 60 w
- 100 w
- 150 w
- 200 w
- 280 w
CRI
- 80 CRI
CCT
- 4000K
- 5000K
Color / Finish
- Gray
Dimming Protocol
- 0-10 V
Industrial Type
- Explosion Proof
- Hazardous Location
- Vapor Proof
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- ETL
- UL
Materials
- Die-Cast Aluminum
Mounting
- Pendant
- Surface
Emergency Options
- Integral EM Battery
Ratings & Compliance
- Class I Div I
- Class I Div II
- Class II Div II
- Class III
- Class III Div I
- Class III Div II
- IK10
- IP66
- Industrial
- Marine
- NEMA 4X
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 277-480 V
- UNV
Warranty
- 10 yr
