LL-SMP

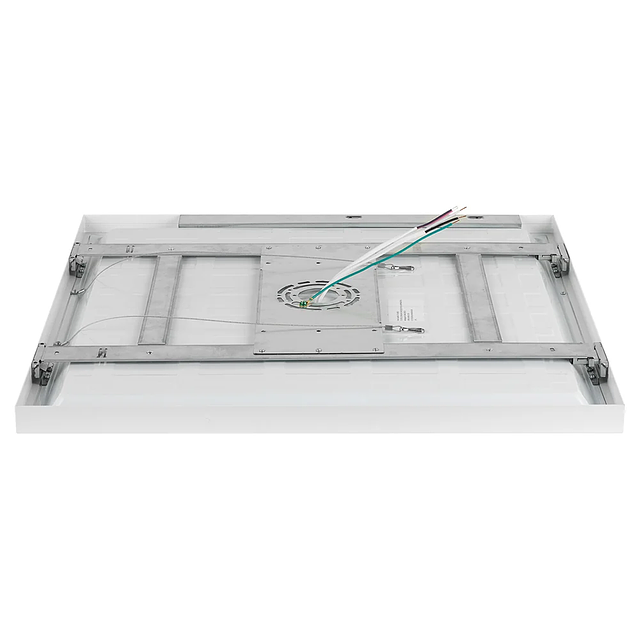

LL-SMP-22-BACK.jpegLL-SMP
Surface Mount Panel
The LITELUMEā¢ LED Surface Mount Panel (LL-SMP) luminaire offers a new slim design with easy installation for retrofit or new construction. This architectural fixture adopts the latest in optical and LED technology providing an evenly pleasant illuminance. Featuring Selectable Power 4 level lumen output andĀ Selectable Color Temperature 2700k, 3000k, 3500k, 4000k and 5000k, allowing for customized energy savings and comfortability. Controls ready.
Applications: Offices, hallways, multipurpose rooms, conference rooms, super markets, schools, stores and many other applications.
Applications: Offices, hallways, multipurpose rooms, conference rooms, super markets, schools, stores and many other applications.
Resources
Premium Construction
Back Lit
Flush and Seamless design with no protruding parts
Low Profile 1.2"
Back Lit
Flush and Seamless design with no protruding parts
Low Profile 1.2"
Premium Driver
High lumen 130 LPW
Long-life, high-efficacy, micro-power LEDs
LED Type SMD2835
PF .98
CRI 80
THD <20%
Driver Efficiency ļ¼90%
Operating Temperature -4Ā°F~113Ā°F
IC Rating Type IC
Damp Rated
60,000 hours at 70% lumen maintenance rated life
Compatible with most Lutron and Leviton dimmers
12Vdc auxiliary dimming
0-10V Continuous Dimming
High lumen 130 LPW
Long-life, high-efficacy, micro-power LEDs
LED Type SMD2835
PF .98
CRI 80
THD <20%
Driver Efficiency ļ¼90%
Operating Temperature -4Ā°F~113Ā°F
IC Rating Type IC
Damp Rated
60,000 hours at 70% lumen maintenance rated life
Compatible with most Lutron and Leviton dimmers
12Vdc auxiliary dimming
0-10V Continuous Dimming
QuickShip Ordering Information
LL-SMP-14-5L-UNV-SCT-SP
LL-SMP-22-5L-UNV-SCT-SP
LL-SMP-24-6L-UNV-SCT-SP
Packageļ¼LL-SMP-14-5L-UNV-SCT-SP
Package Size: 50x9x14 inch
Weight: 27 LBS (4 PCS)
Pallet size: 48x42x80 inch
Qty: 96 PCS / 24 CTNS
Total Weight: 680 LBS
Factory Default Parameters:
Power: 41W
CCTļ¼4000K
Packageļ¼LL-SMP-22-5L-UNV-SCT-SP
Weight: 27 LBS (4 PCS)
Pallet size: 48x42x80 inch
Qty: 96 PCS / 24 CTNS
Total Weight: 680 LBS
Factory Default Parameters:
Power: 41W
CCTļ¼4000K
Packageļ¼LL-SMP-22-5L-UNV-SCT-SP
Package Size: 26x9x26 inch
Weight: 28 LBS (4 PCS)
Pallet size: 4842x80 inch
Qty: 120 PCS / 30 CTN
Total Weight: 875 LBS
Factory Default Parameters:
Power: 41WĀ
CCTļ¼4000K
Weight: 28 LBS (4 PCS)
Pallet size: 4842x80 inch
Qty: 120 PCS / 30 CTN
Total Weight: 875 LBS
Factory Default Parameters:
Power: 41WĀ
CCTļ¼4000K
Packageļ¼LL-SMP-24-6L-UNV-SCT-SP
Package Size: 50x9x26 inch
Weight: 45 LBS (4 PCS)
Pallet size: 48x42x80 inch
Qty: 60 PCS / 15 CTN
Total Weight: 710 LBS
Factory Default Parameters:
Power: 50W
CCTļ¼4000K
Weight: 45 LBS (4 PCS)
Pallet size: 48x42x80 inch
Qty: 60 PCS / 15 CTN
Total Weight: 710 LBS
Factory Default Parameters:
Power: 50W
CCTļ¼4000K
Watts
- 20
- 28
- 34
- 41
- 50
Size
- 1x4
- 2x2
- 2x4
Availability
- In Stock
- Quick Ship
Beam Angle
- 113
CRI
- 80
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Color / Finish
- White
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
Dimming Range
- 10-100%
Efficacy
- 130
Lamp Life
- 60000
Lamp Source
- LED
Listings
- UL
Mounting
- Surface
Ratings & Compliance
- Damp
Shape
- Rectangular
- Square
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
Warranty
- 10 yr
