LL-RW
Screen Shot 2023-12-12 at 2.17.24 PM.png
Screen Shot 2023-12-12 at 2.17.29 PM.png
RL02-Side 1.jpgLL-RW
LED Roadway
The LITELUME™ Roadway (LL-RW) Draws attention with a heavy duty die-cast aluminum housing, outstanding corrosion protection, uncompromising optical performance and un-matched versatility for a wide variety of area and roadway applications. Featuring a single latch tool-less entry, terminal block power set up, industry leading surge protection options, superior lumen maintenance with a robust yet economical design.

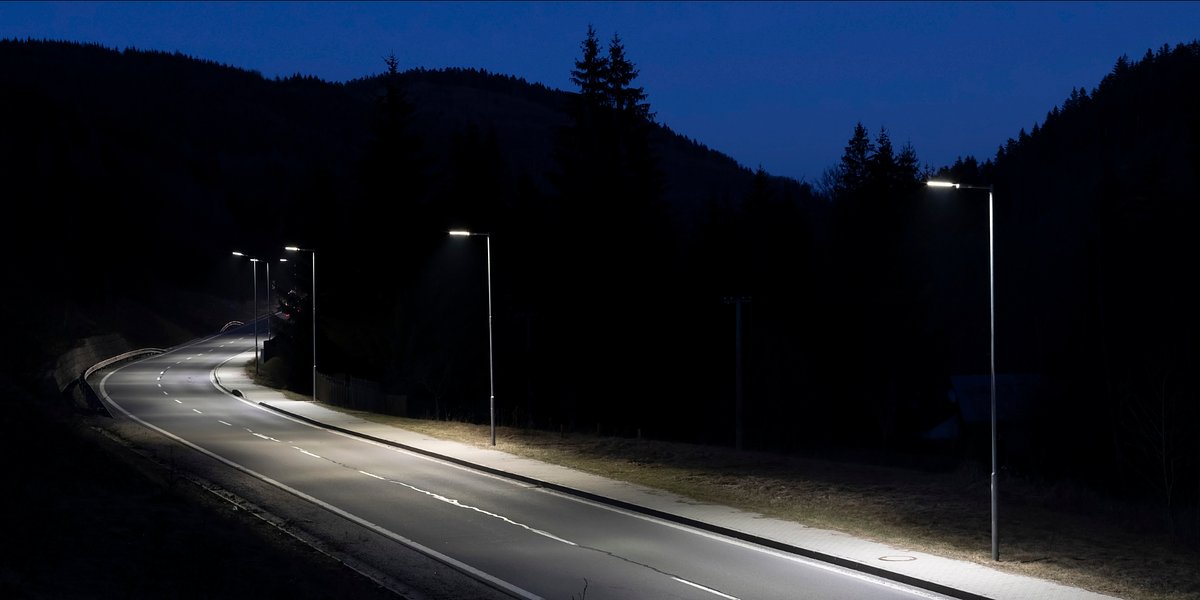

Applications: Municipality, Parking Lot, Roadways, Multi-family, Community and General Site Illumination.
Applications: Municipality, Parking Lot, Roadways, Multi-family, Community and General Site Illumination.
Resources
Die-cast Aluminum
Protective powder Coat
Polycarbonate lens
Protective powder Coat
Polycarbonate lens
3G vibration rated
IP 66 Rated
Wide Range Mounting Slides over to fit 1 5/8" - 2 3/8” OD
IP 66 Rated
Wide Range Mounting Slides over to fit 1 5/8" - 2 3/8” OD
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
9,600 to 20,000 lm
High Efficacy 141 LPW
Type 2 and 3 Distribution
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
9,600 to 20,000 lm
High Efficacy 141 LPW
Type 2 and 3 Distribution
QuickShip Ordering Information
LL-RW-70-50-UNV-T3-GY-PC
LL-RW-70-40-UNV-T3-GY-PC
LL-RW-105-50-UNV-T3-GY-PC
LL-RW-105-40-UNV-T3-GY-PC
LL-RW-150-40-UNV-T3-GY-TLPC
LL-RW-150-30-UNV-T3-GY-TLPC
LL-RW-150-50-480-T3-GY-TLPC
LED Roadway Light
LED Cobra Head
LL-RW-70-50-UNV-T3-GY-PC
LL-RW-70-40-UNV-T3-GY-PC
LL-RW-105-50-UNV-T3-GY-PC
LL-RW-105-40-UNV-T3-GY-PC
LL-RW-150-40-UNV-T3-GY-TLPC
LL-RW-150-30-UNV-T3-GY-TLPC
LL-RW-150-50-480-T3-GY-TLPC
LED Roadway Light
LED Cobra Head
Lumens
- 9900 Lm
- 14600 Lm
- 20000 Lm
Watts
- 70 w
- 105 w
- 150 w
CRI
- 80 CRI
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Grey
- White
Controls Options
- Motion Sensor
- Photocell
Dimming Protocol
- 0-10 V
- Synapse
Distribution
- Type II
- Type III
Efficacy
- 135 lm/w
- 141 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- Buy American Act (BAA)
- IP66
- TAA
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 480 V
- UNV
Warranty
- 10 yr
