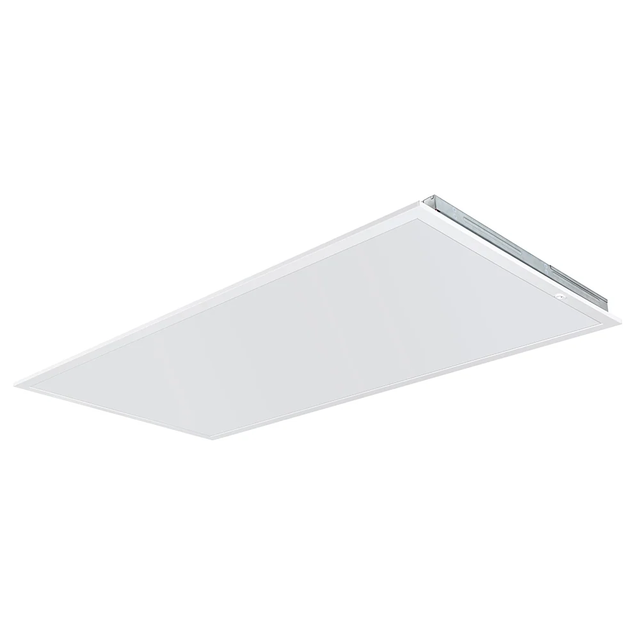

Back Lit Panel Econolume Series
The LITELUMEā¢ LED Back Lit Panel (LL-BLPECO) Econolume Series is a recessed, surface or suspended mounted luminaire designed for retrofit or new construction. This architectural fixture adopts the latest in optical and LED technology providing an evenly pleasant volumetric illuminance. Featuring 3 level lumen output and 3 color adjustable CCT, allowing for customized energy savings and comfortability. High Power factor .90 and low THD.
Resources
QuickShip Ordering Information
LL-BLPECO-24-[35][40][46]-3CCT-UNV
LL-BLPECO-22-[20][25][30]-3CCT-UNV
LL-BLPECO-14-[20][25][30]-3CCT-UNV
Package: LL-BLPECO-24-[35][40][46]-3CCT-UNV
Package Size: 50x8.8x25.9 inch
Weight: 36.88 LBS (4 PCS)
Pallet size: 42x48x80 inch
Qtyļ¼72 pcs/ 18 ctn
Total Weight: 694 LBS
Package: LL-BLPECO-22-[20][25][30]-3CCT-UNV
Package Size: 26.1x8.8x25.9 inch
Weight: 23.12 LBS (4 PCS)
Pallet size: 42x48x70 inch
Qtyļ¼144 pcs/36 ctn
Total Weight: 870 LBS
Package:Ā LL-BLPECO-14-[20][25][30]-3CCT-UNV
Package Size: 49.49x6.97x13.86 inch
Weight: 22.44 LBS (4 PCS)
Pallet size: 42x48x80 inch
Qtyļ¼144 pcs/ 36 ctn
Total Weight: 838 LBS
LL-BLPECO-22-[20][25][30]-3CCT-UNV
LL-BLPECO-14-[20][25][30]-3CCT-UNV
Package: LL-BLPECO-24-[35][40][46]-3CCT-UNV
Package Size: 50x8.8x25.9 inch
Weight: 36.88 LBS (4 PCS)
Pallet size: 42x48x80 inch
Qtyļ¼72 pcs/ 18 ctn
Total Weight: 694 LBS
Package: LL-BLPECO-22-[20][25][30]-3CCT-UNV
Package Size: 26.1x8.8x25.9 inch
Weight: 23.12 LBS (4 PCS)
Pallet size: 42x48x70 inch
Qtyļ¼144 pcs/36 ctn
Total Weight: 870 LBS
Package:Ā LL-BLPECO-14-[20][25][30]-3CCT-UNV
Package Size: 49.49x6.97x13.86 inch
Weight: 22.44 LBS (4 PCS)
Pallet size: 42x48x80 inch
Qtyļ¼144 pcs/ 36 ctn
Total Weight: 838 LBS
Lumens
- 2660 Lm
- 2760 Lm
- 3250 Lm
- 3350 Lm
- 3810 Lm
- 3910 Lm
- 4650 Lm
- 5200 Lm
- 5942 Lm
Watts
- 20 w
- 25 w
- 30 w
- 35 w
- 40 w
- 46 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3500K
- 4000K
- 5000K
Color / Finish
- White
Dimming Protocol
- 0-10 V
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Ratings & Compliance
- DLC
- DLC Premium
- Damp
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
