LL-IFG3
LL-IFG.jpgLL-IFG3

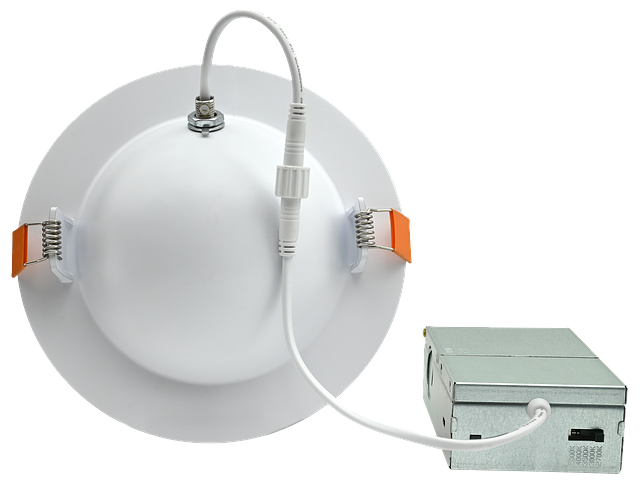

LED 3" Recessed Integrated Module with Floating Gimbal
The LITELUME™ LL-IFG3 Brings precision and versatility to your lighting project. This recessed, canless gimbal module combines a clean, modern look with powerful adjustability, 355° rotation and 90° tilt for perfect aiming every time. 5 CCT Field-selectable color temperatures 2700K–5000K ensures the right light for any application, from cozy residential spaces to demanding commercial environments. Long lasting efficiency, flexibility, and style without the need for a housing or junction box.
Resources
Premium Powder Coat
Aluminum White Housing
PMMA diffuser
Adjustable 355° rotation and 90° tilt
Aluminum White Housing
PMMA diffuser
Adjustable 355° rotation and 90° tilt
PF > 0.90.
THD < 20%
CRI 90
Triac Dimming @ 120v
Surge Protection = 1kV
Operating Temperature -4°F to 113°F
cETLus listed for wet locations
Energy Star certified
Complies with FCC part 15, class B
Complies with Title 24
Type IC
LUTRON COMPATIBLE DIMMERS AND CONTROLS
TG-600PR-WH
SLV-600P-AL
DVCL-153P
S-600PR-WH
DV-600PR-WH
MSCL-OP153M
CTCL-153PDH-WH
SCL-153PH-WH
PD-6WCL
TGCL-153PH-LA
GT-600P
MACL-153M//MA-R
LEVITON COMPATIBLE DIMMERS AND CONTROLS
6672
6674
IPL06
RNL06
DSL06
THD < 20%
CRI 90
Triac Dimming @ 120v
Surge Protection = 1kV
Operating Temperature -4°F to 113°F
cETLus listed for wet locations
Energy Star certified
Complies with FCC part 15, class B
Complies with Title 24
Type IC
LUTRON COMPATIBLE DIMMERS AND CONTROLS
TG-600PR-WH
SLV-600P-AL
DVCL-153P
S-600PR-WH
DV-600PR-WH
MSCL-OP153M
CTCL-153PDH-WH
SCL-153PH-WH
PD-6WCL
TGCL-153PH-LA
GT-600P
MACL-153M//MA-R
LEVITON COMPATIBLE DIMMERS AND CONTROLS
6672
6674
IPL06
RNL06
DSL06
QuickShip Ordering Information
LL-IFG3-5L-5CCT
LL-IFG3-5L-5CCT
Lumens
- 500 Lm
Watts
- 6 w
Weight
- .55 lbs
Availability
- In Stock
- Quick Ship
Beam Angle
- 120
CRI
- 90 CRI
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Color / Finish
- White
Dimensions
- H: 1.15 In. L: 3.94 In. W: 3.94 In.
Dimming Protocol
- Triac (Leading Edge)
Dimming Range
- 1%
Efficacy
- 94 lm/w
Installation Type
- New Construction
- Retrofit & Remodel
Lamp Life
- 134000 hrs
Lamp Source
- LED
Listings
- ETL
Materials
- Aluminum
- PMMA
Ratings & Compliance
- Energy Star
- Exterior
- FCC
- IC Rated
- Interior
- JA8
- Title 24
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Trim Finish
- White
Trim Type
- Gimbal
Voltage
- 120 V
Warranty
- 10 yr
