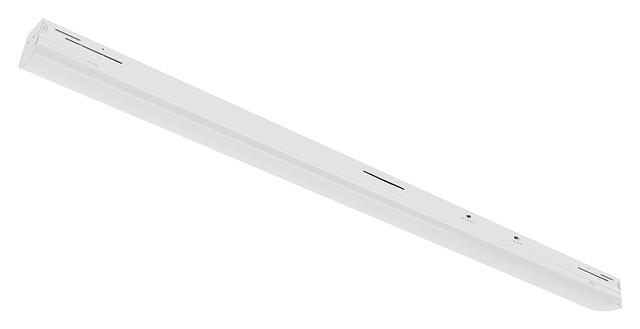

LED Strip Elite (G2)

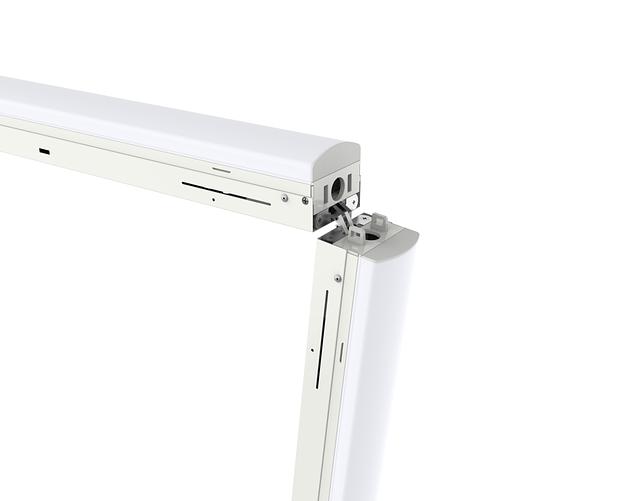

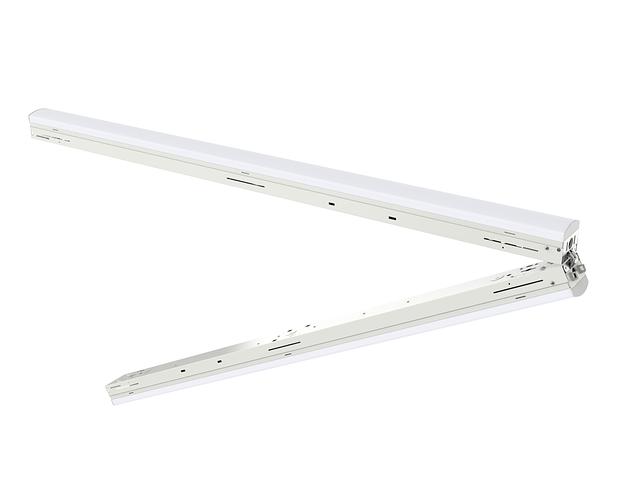

The LITELUME™ LED Strip Elite (G2) (LL-STRE) is a surface or suspended mounted luminaire designed for retrofit or new construction. Available in 2', 4’ and 8’ sections, capable of continuous runs with optional joiner bracket. 8' version incorporates (2) 4' foldable sections designed for cost affective shipping and stocking space qualifying for our $2,000 FFA shipping policy. Featuring 4 lumen levels via field selectable power and 5 color field selectable CCT, allowing for customized energy savings and comfortability. Controls ready.
Applications include offices, hallways, conference rooms, bathrooms and many other commercial, industrial and residential areas.
Applications include offices, hallways, conference rooms, bathrooms and many other commercial, industrial and residential areas.
Resources
Cold-Rolled Steel
PC Lens
Standard Surface Mount
Optional T-Grid, V Hook & Chain, or Aircraft Cable Mount
Standard lengths are 2ft, 4ft, 8ft, and can be extended via joiner brackets for continuous runs
PC Lens
Standard Surface Mount
Optional T-Grid, V Hook & Chain, or Aircraft Cable Mount
Standard lengths are 2ft, 4ft, 8ft, and can be extended via joiner brackets for continuous runs
Premium LED's
Ultra efficient driver
Universal 120-277v
PF .90
CRI 80
THD <20%
High Efficacy up to 160 lm/W
Field Selectable Lumen Package 1,428 to 10,307 lm
Field Selectable Color Temperature 2700k/3000k/3500k/4000k/5000k
0-10V dimming driver with 10%-100% dimming range
Controls Ready with Plug and Play Audio Jack Receptacle
Optional Emergency Battery backup
Operating Temperature Range: -20°C to 40°C (-4˚F - + 104˚F).
Ultra efficient driver
Universal 120-277v
PF .90
CRI 80
THD <20%
High Efficacy up to 160 lm/W
Field Selectable Lumen Package 1,428 to 10,307 lm
Field Selectable Color Temperature 2700k/3000k/3500k/4000k/5000k
0-10V dimming driver with 10%-100% dimming range
Controls Ready with Plug and Play Audio Jack Receptacle
Optional Emergency Battery backup
Operating Temperature Range: -20°C to 40°C (-4˚F - + 104˚F).
QuickShip Ordering Information
LL-STRE-2-4L-UNV-SCT-SP-WH
LL-STRE-4-6L-UNV-SCT-SP-WH
LL-STRE-8-10L-UNV-SCT-SP-WH
LL-STRE-4-6L-UNV-SCT-SP-WH
LL-STRE-8-10L-UNV-SCT-SP-WH
Availability
- In Stock
- Quick Ship
CRI
- 80
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Color / Finish
- White
Controls Options
- Bi-level Dimming
- Bluetooth
- Daylight Harvesting
- Daylight Occupancy Sensor
- Daylight Sensor
- Dimmable
- Motion Sensor
- Network Wireless Control
- Occupancy Sensor
- PIR Sensor
- Passive Infrared
Dimensions
- L: 24 In. W: 2.6 In. H: 2.3 In.
- L: 47.9 In. W: 2.6 In. H: 2.3 In.
- L: 96 In. W: 2.6 In. H: 2.3 In.
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
Dimming Range
- 10%
Efficacy
- 160
Lamp Life
- 100000
Lamp Source
- LED
Listings
- UL
Materials
- Polycarbonate
- Steel
Mounting
- Cable
- Ceiling
- Chain
- Surface
- Surface / Canopy
- Suspended
- T-Grid
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Interior
- TAA
- Title 24
Shape
- Rectangular
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
Warranty
- 10 yr
