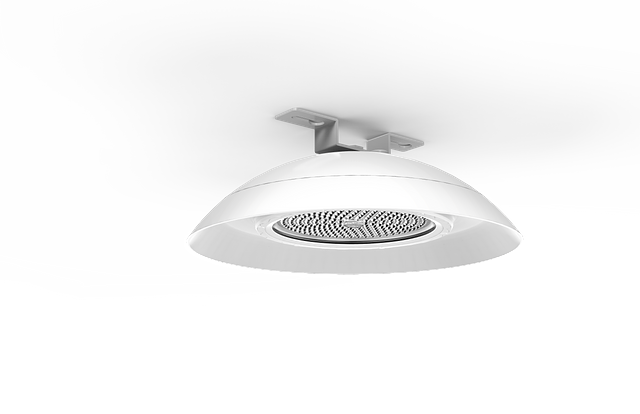

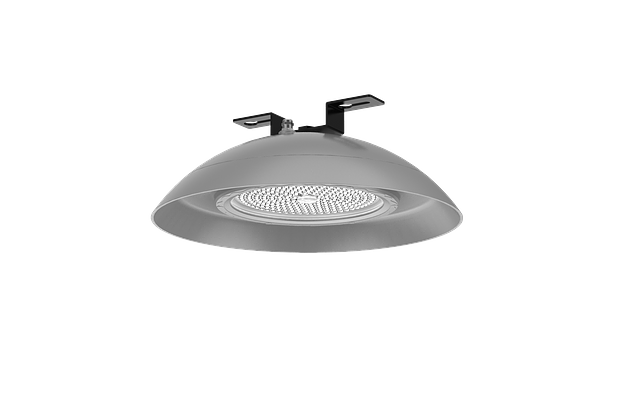

LLCLEAN CEILING MOUNT 3.png
LLCLEAN WITH CEILING MOUNT 2.png

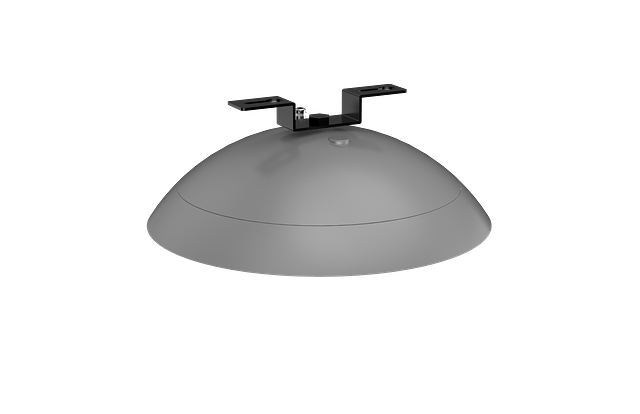

LLCLEAN WITH CEILING MOUNT.png

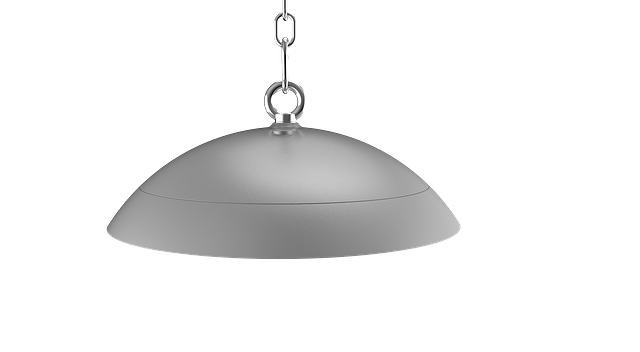

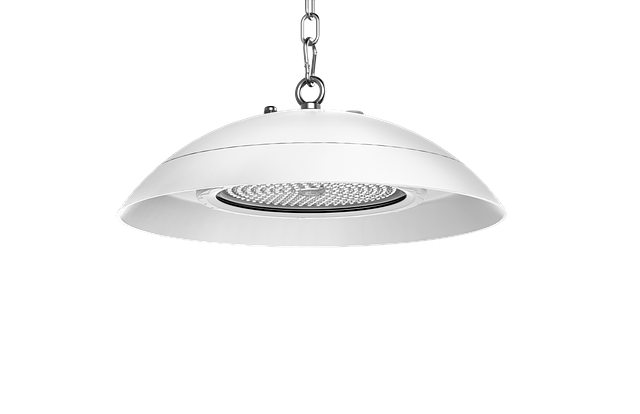

LLCLEAN WITH EYE BOLT LOOP & SAFETY CHAIN.png

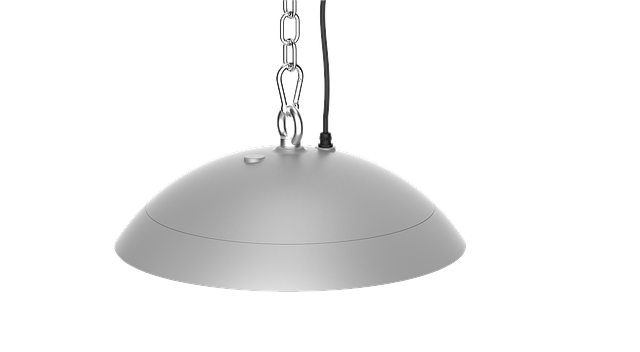

LLCLEAN WITH EYE BOLT LOOP MOUNT & SAFETY CHAIN WITH CORD.png

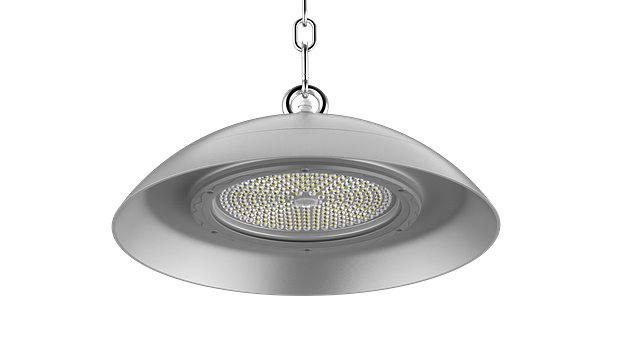

LLCLEAN WITH EYE BOLT LOOP MOUNT & SAFTEY CHAIN 3.png
LLCLEAN WITH EYE BOLT LOOP MOUNT ANGLE.png

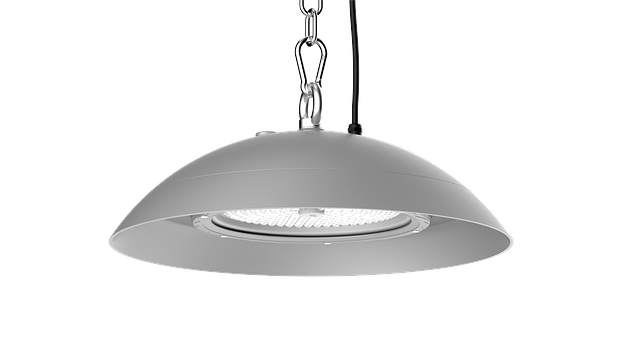

LLCLEAN WITH EYEBOLT LOOP MOUNT & SAFETY CHAIN WITH CORD 2.png

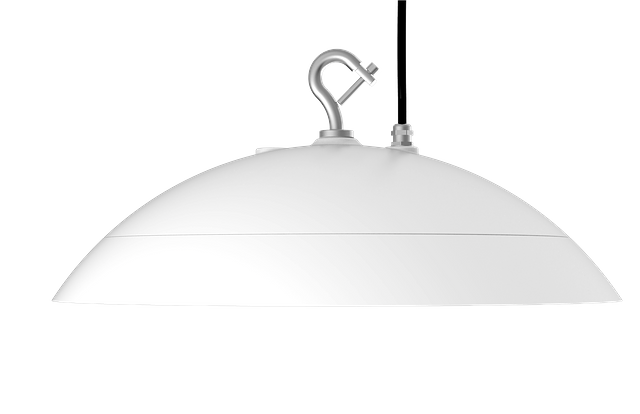

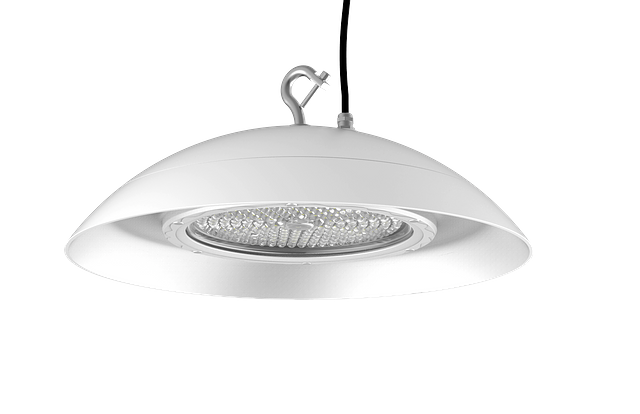

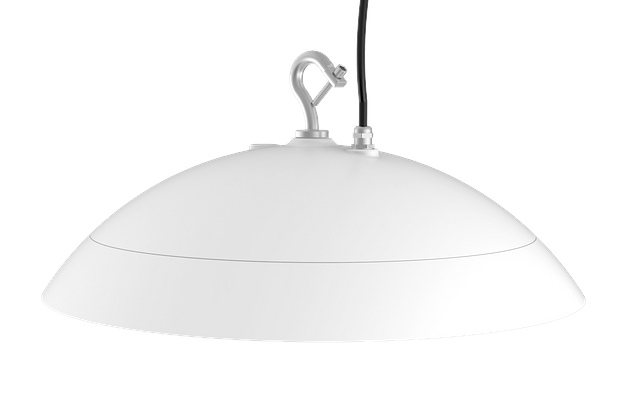

LLCLEAN WITH HOOK MOUNT & CORD ANGLE.png
LLCLEAN WITH HOOK MOUNT & CORD.png
LLCLEAN WITH HOOK MOUNT WITH CORD.png

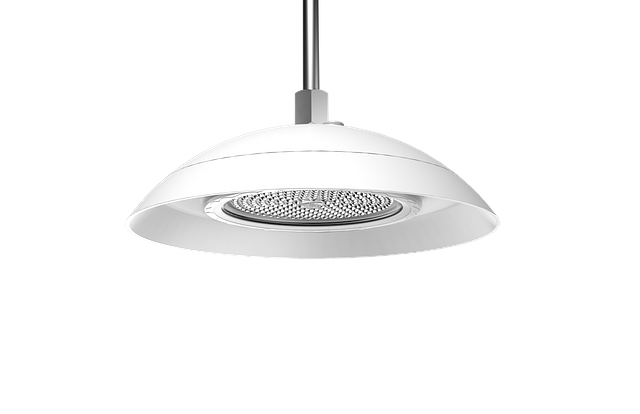

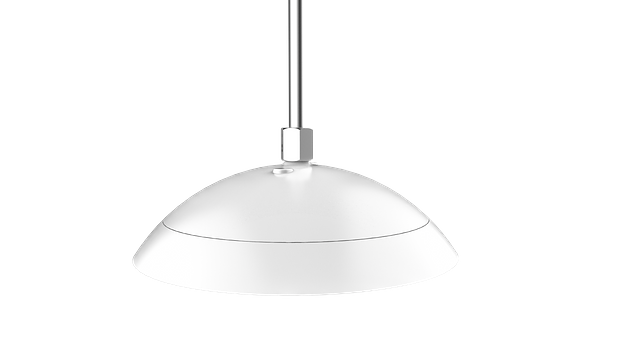

LLCLEAN WITH PENDANT MOUNT 2.png
LLCLEAN WITH PENDANT MOUNT.pngLL-CLHB
LED Clean Highbay
The LITELUME™ LED Clean High Bay (LL-CLHB) is specifically designed for food processing applications. Dust proof unibody construction and aesthetically pleasing for maximum durability and reliability. Specification grade commercial and industrial lighting.
Resources
Food Specification Grade Aluminum alloy
Protective powder coat
C3 Corrosion rated
Anti-Glare, Anti-UV polycarbonate
IP66, IP69X, IP6X, IK10
Protective powder coat
C3 Corrosion rated
Anti-Glare, Anti-UV polycarbonate
IP66, IP69X, IP6X, IK10
Premium Constant Current Driver
1-10v Dimming Standard
Standard Surge Protection 6kV Line-Line, 10kV Line-Earth
Premium LED's 3030
244,000hrs L70
Standard UGR 25, Optional 19
PF .92
<20%
CRI 80, CRI 90 Optional
Multiple beam angles
High Efficacy 155 LPW
1-10v Dimming Standard
Standard Surge Protection 6kV Line-Line, 10kV Line-Earth
Premium LED's 3030
244,000hrs L70
Standard UGR 25, Optional 19
PF .92
<20%
CRI 80, CRI 90 Optional
Multiple beam angles
High Efficacy 155 LPW
Lead time Information
Built to order 5 - 6 weeks
LED Round High Bay Lights Clean Room Food Grade
Replaces 400W MH/PSMH
Replaces 320W MH/PSMH
Replaces 250W MH/PSMH
Lumens
- 15500 Lm
- 18600 Lm
- 23250 Lm
- 31000 Lm
Watts
- 100 w
- 120 w
- 150 w
- 200 w
Beam Angle
- 30
- 50
- 60
- 90
- 120
CRI
- 80 CRI
- 90 CRI
CCT
- 4000K
- 5000K
Color / Finish
- Gray
- White
Lamp Source
- LED
Listings
- UL
Materials
- Aluminum Alloy
Mounting
- Ceiling
- Pendant
Ratings & Compliance
- IK10
- IP66
- IP69K
- NSF
Voltage
- 120-277 V
- 277-480 V
Warranty
- 10 yr
