LL-VT
VT1.jpegLL-VT

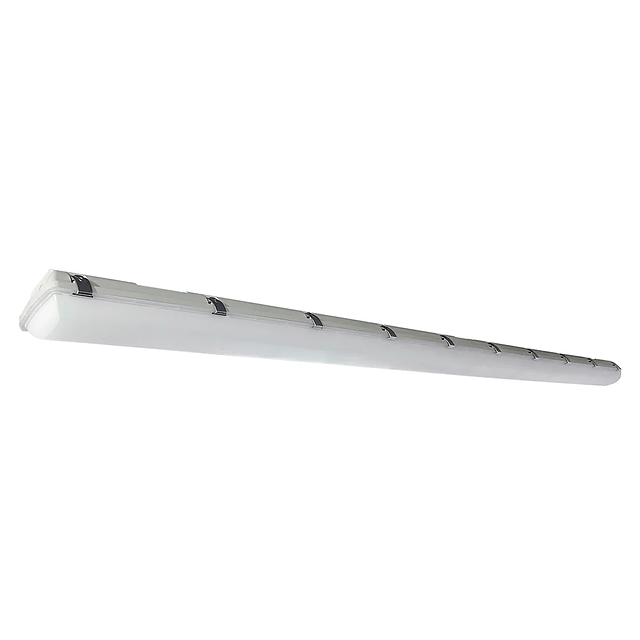

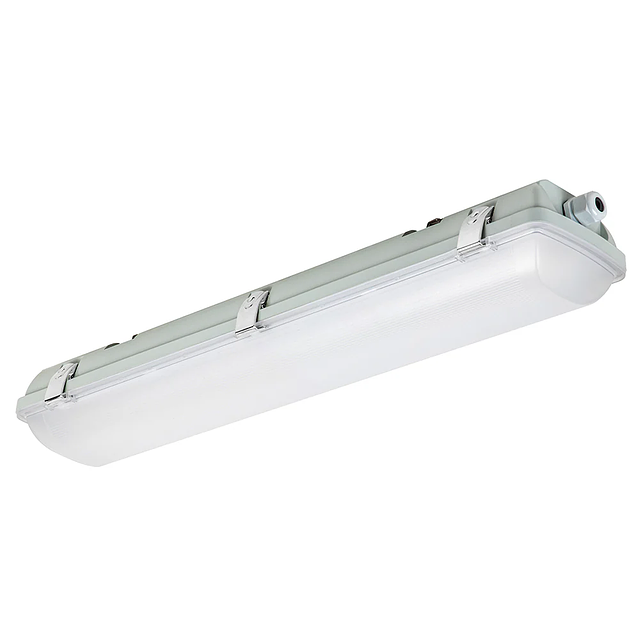

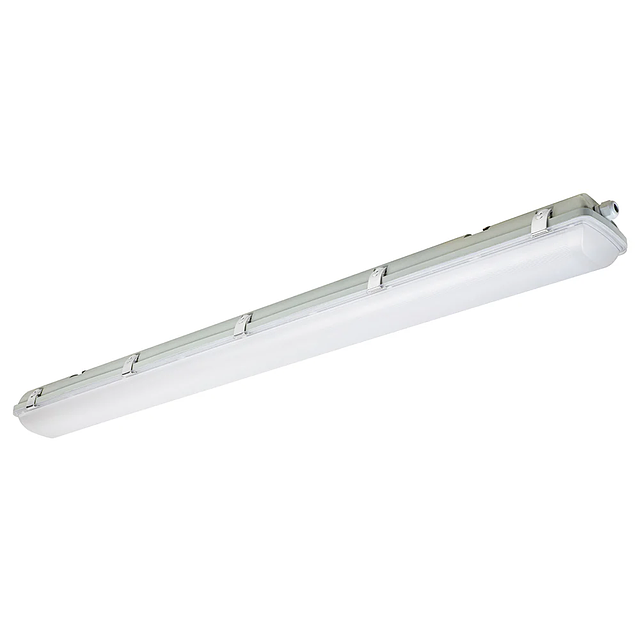

LED Vaportite Adjustalume Series

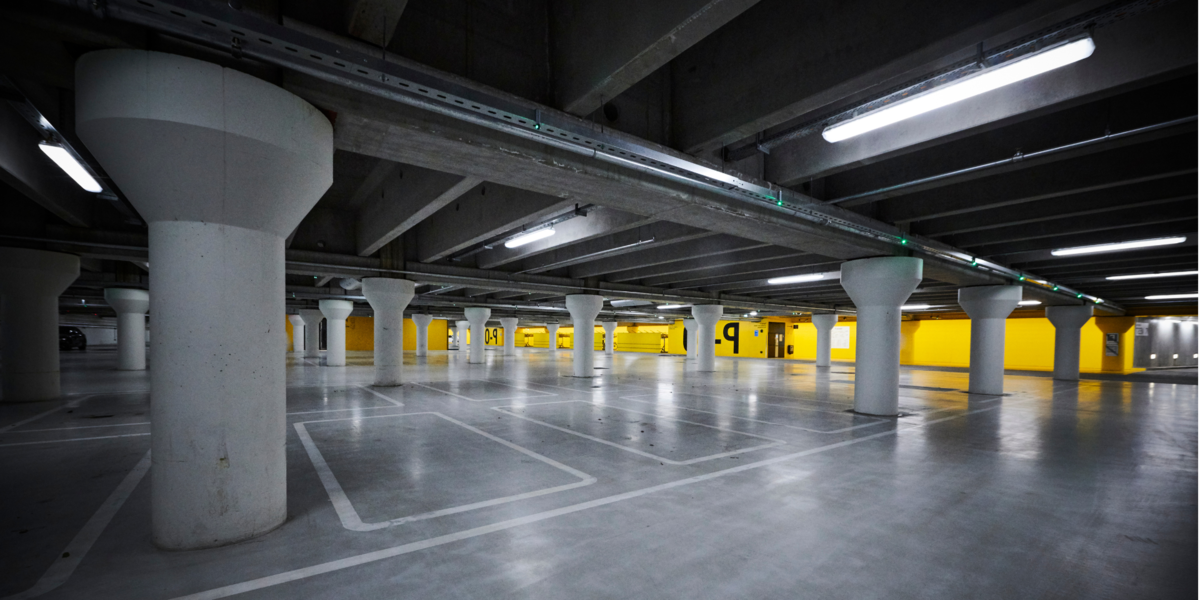

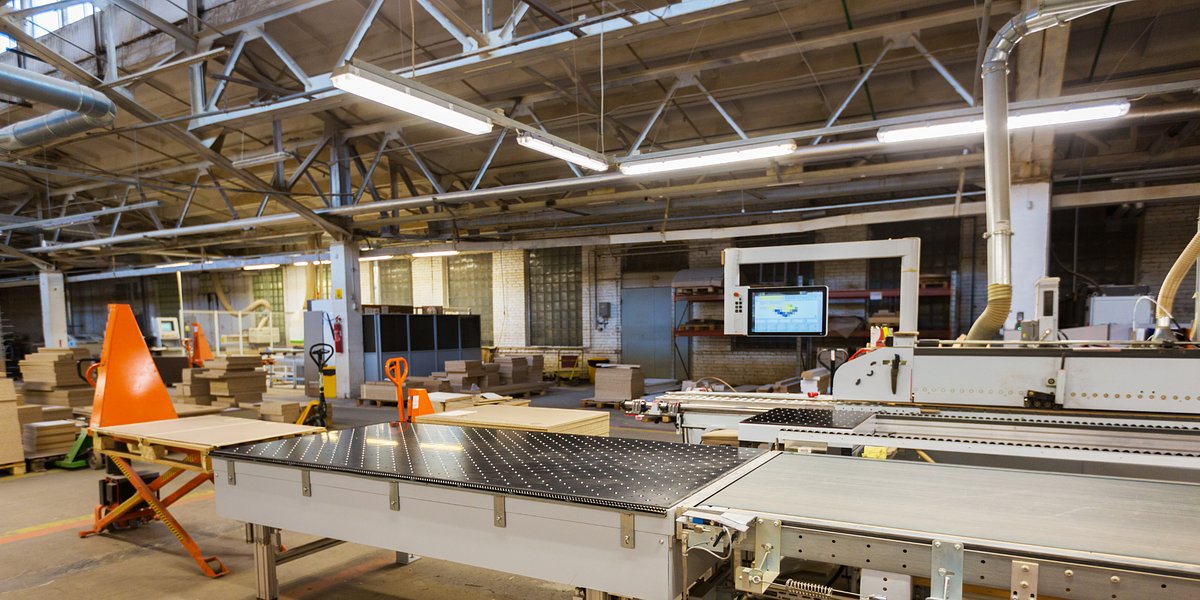

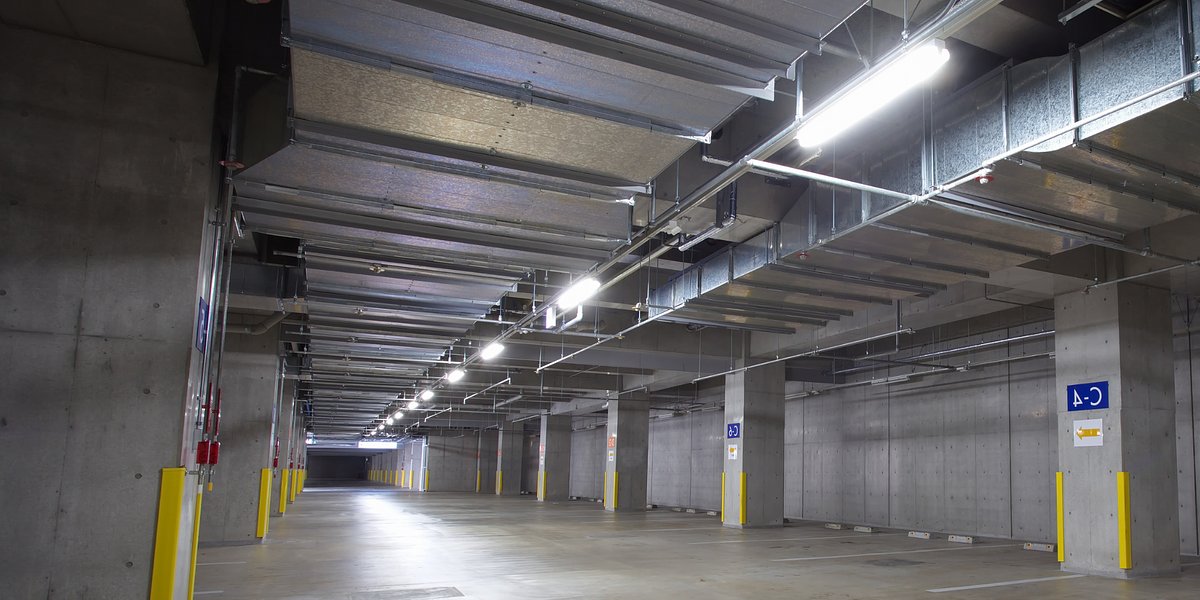

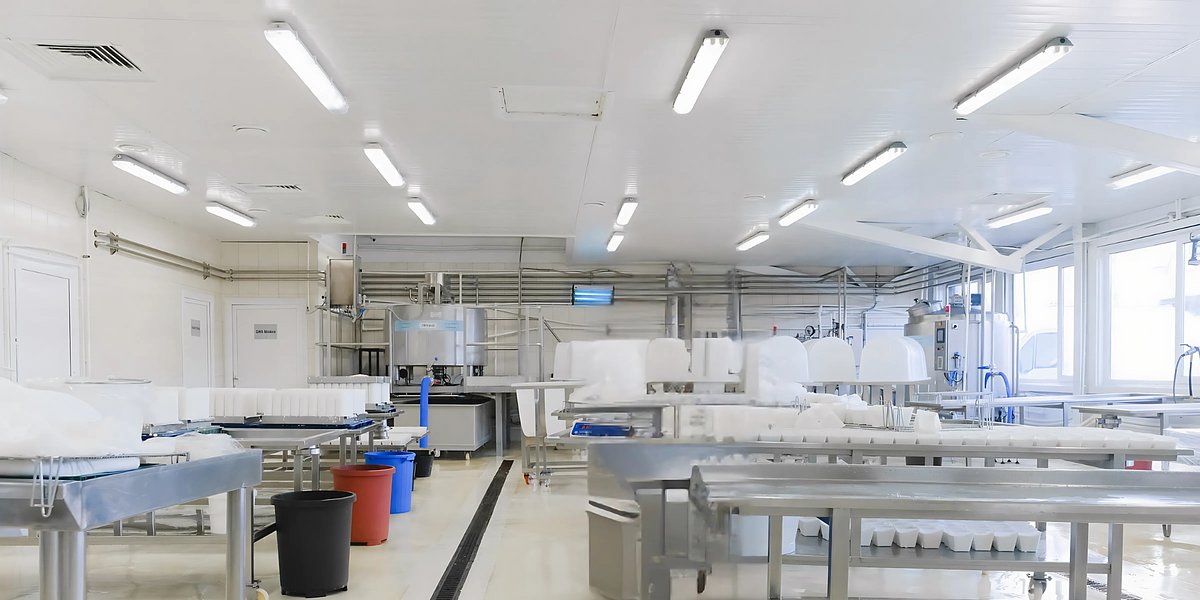

The LITELUMEā¢ LED Vaportite (LL-VT) Adjustalume Series is a suspended or surface mounted vapor proof luminaire designed for retrofit or new construction. Applications include parking garage, car washes, food processing, coolers, freezers, education, healthcare, saw mills, hockey rinks, natatorium, commercial and industrial with applicable building and safety codes. Featuring 3 level lumen output and 3 color adjustable CCT, allowing for customized energy savings and comfortability. High Power factor .95 and low THD.
Resources
Robust Durable High Quality ABS Vapor TightĀ
Stainless Steel Latches
2ft, 4ft and 8ft
Impact Resistant Polycarbonate Lens
NEMA 4X
IP66
NSF
IK10 Impact Rated
Surface or Suspended Mount
Stainless Steel Latches
2ft, 4ft and 8ft
Impact Resistant Polycarbonate Lens
NEMA 4X
IP66
NSF
IK10 Impact Rated
Surface or Suspended Mount
Premium LED's
Ultra efficient driver
PF .95
CRI 83
THD <20%
High Efficacy up to 160 lm/W
Field Selectable Lumen Package 2,872 to 12,364 lm
Standard: 0-10v Continuous, 12Vdc Auxiliary Dimming
Ultra efficient driver
PF .95
CRI 83
THD <20%
High Efficacy up to 160 lm/W
Field Selectable Lumen Package 2,872 to 12,364 lm
Standard: 0-10v Continuous, 12Vdc Auxiliary Dimming
QuickShip Ordering Information
LL-VT2-[20][25][30]-3CCT-UNV
LL-VT4-[34][38][45]-3CCT-UNV
LL-VT8-[65][75][90]-3CCT-UNV
Package: LL-VT2-[20][25][30]-3CCT-UNV
Packing size: 26.5 x 5.3 x 3.6 inch
Weightļ¼3.4 LBS ļ¼1 PCSļ¼
Packing size: 27.1 x 11.0 x 8 inch
Weightļ¼ 13.6 LBS ļ¼4 PCSļ¼
Pallets Sizeļ¼48x42x70 inch
Qtyļ¼49 CTN / 196 PCS
Total Weightļ¼750 LBS
Package: LL-VT4-[34][38][45]-3CCT-UNV
Packing size: 51.4 x 5.3 x 3.6 inch
Weightļ¼5.86 LBS ļ¼1 PCSļ¼
Packing size: 51.9 x 11.3 x 8 inch
Weightļ¼23.44 LBS ļ¼ 4 PCSļ¼
Pallet size: 52x42x73 inch
Qtyļ¼120 pcs / 30 ctn
Total Weight: 800 LBS
Package: LL-VT8-[65][75][90]-3CCT-UNV
Packing size: 95.8 x 5.3 x 3.6 inch
Weightļ¼12 LBS ļ¼1 PCSļ¼
Packing size: 96.8 x 10.9 x 8 inch
Weightļ¼ 44.96 LBS ļ¼ 4 PCSļ¼
Pallet Size: 98 x 42 x 70 inch
Qtyļ¼36 CTNS / 144 PCS
Total Weight: 1650 LBS
Linear LED Vaportite
Package: LL-VT2-[20][25][30]-3CCT-UNV
Packing size: 26.5 x 5.3 x 3.6 inch
Weightļ¼3.4 LBS ļ¼1 PCSļ¼
Packing size: 27.1 x 11.0 x 8 inch
Weightļ¼ 13.6 LBS ļ¼4 PCSļ¼
Pallets Sizeļ¼48x42x70 inch
Qtyļ¼49 CTN / 196 PCS
Total Weightļ¼750 LBS
Package: LL-VT4-[34][38][45]-3CCT-UNV
Packing size: 51.4 x 5.3 x 3.6 inch
Weightļ¼5.86 LBS ļ¼1 PCSļ¼
Packing size: 51.9 x 11.3 x 8 inch
Weightļ¼23.44 LBS ļ¼ 4 PCSļ¼
Pallet size: 52x42x73 inch
Qtyļ¼120 pcs / 30 ctn
Total Weight: 800 LBS
Package: LL-VT8-[65][75][90]-3CCT-UNV
Packing size: 95.8 x 5.3 x 3.6 inch
Weightļ¼12 LBS ļ¼1 PCSļ¼
Packing size: 96.8 x 10.9 x 8 inch
Weightļ¼ 44.96 LBS ļ¼ 4 PCSļ¼
Pallet Size: 98 x 42 x 70 inch
Qtyļ¼36 CTNS / 144 PCS
Total Weight: 1650 LBS
Linear LED Vaportite
Replaces 400W MH/PSMH
Replaces 320W MH/PSMH
Replaces 250W MH/PSMH
Replaces 175W MH/PSMH
Replaces 150W MH/PSMH
Replaces 100W MH/PSMH
Replaces 4 lamp T5H0
Replaces 4 lamp T8
Lumens
- 2872 Lm
- 3454 Lm
- 4021 Lm
- 4941 Lm
- 5423 Lm
- 6494 Lm
- 9295 Lm
- 10500 Lm
- 12364 Lm
Watts
- 20 w
- 25 w
- 30 w
- 34 w
- 38 w
- 45 w
- 65 w
- 75 w
- 90 w
Weight
- 3.4 lbs
- 6 lbs
- 11.2 lbs
Beam Angle
- 115
CRI
- 83 CRI
CCT
- Field Selectable CCT
- 3500K
- 4000K
- 5000K
Color / Finish
- Gray
Controls Options
- Motion Sensor
Dimming Protocol
- 0-10 V
Efficacy
- 147 lm/w
Industrial Type
- Vapor Proof
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- ABS
- Polycarbonate
Mounting
- Surface
- Suspended
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- DLC
- IP66
- Industrial
- NSF
- Wet
Shape
- Rectangular
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
