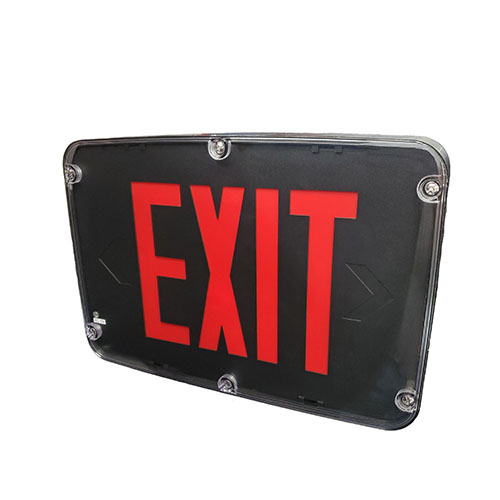

LED NEMA 4X NSF Exit Sign
Ultra bright, energy efficient, long life Red or Green LEDs
Resources
Housing is reinforced polycarbonate construction in gray finish
Corrosion-resistant enclosure with one piece, high impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws
Knockout’s provided for conduit feed applications
EZ snap-out Chevron directional indicators
Corrosion-resistant enclosure with one piece, high impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws
Knockout’s provided for conduit feed applications
EZ snap-out Chevron directional indicators
Dual 120/277 voltage
Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery)
Charge rate/power “ON” LED indicator light and push to-test switch for mandated code compliance testing
4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only)
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery)
Charge rate/power “ON” LED indicator light and push to-test switch for mandated code compliance testing
4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only)
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes
IP66 rated for Ingress Protection.
NEMA4X and NSF rated
Certified to CEC under Title 20 Regulations. UL certified for use in food service operations
UL Listed for Wet locations (0°C – 50°C)
IP66 rated for Ingress Protection.
NEMA4X and NSF rated
Certified to CEC under Title 20 Regulations. UL certified for use in food service operations
UL Listed for Wet locations (0°C – 50°C)
Lumens
- 2023 Lm
Color / Finish
- Black
- White
Emergency Type
- Exit Signs
Lamp Source
- LED
Listings
- UL
Materials
- Polycarbonate
Ratings & Compliance
- IP66
- NEMA 4X
- NSF
- Title 20
- Wet
Special Programs
- Quick Ship
Static LED Color
- Green
- Red
Voltage
- 120 V
- 277 V
Warranty
- 7 yr
