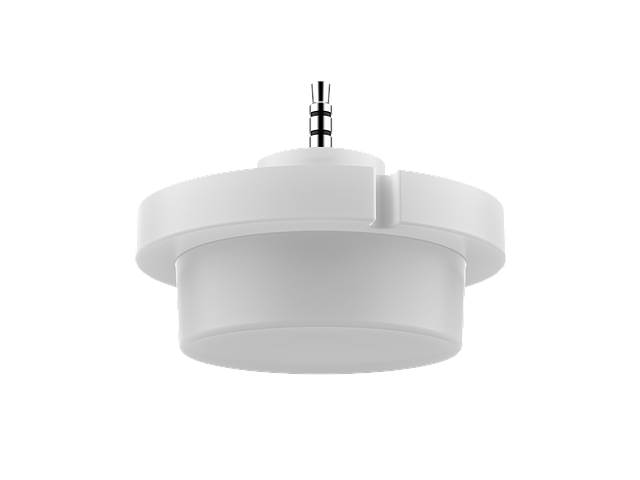

plug-and-play sensor (ANT-5-4T ).png

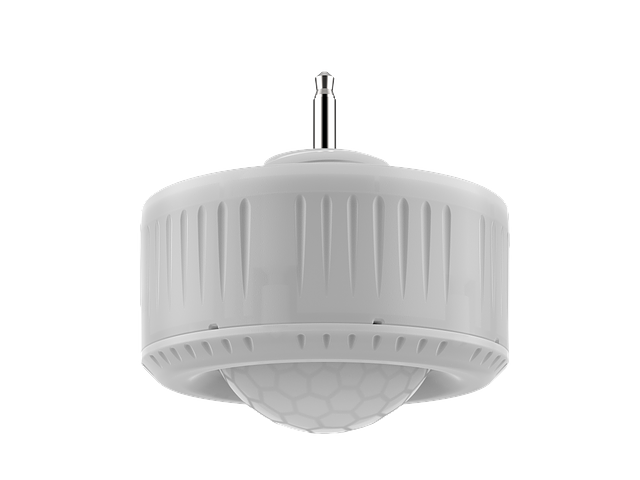

plug-and-play sensor (ANT-6-4T).png

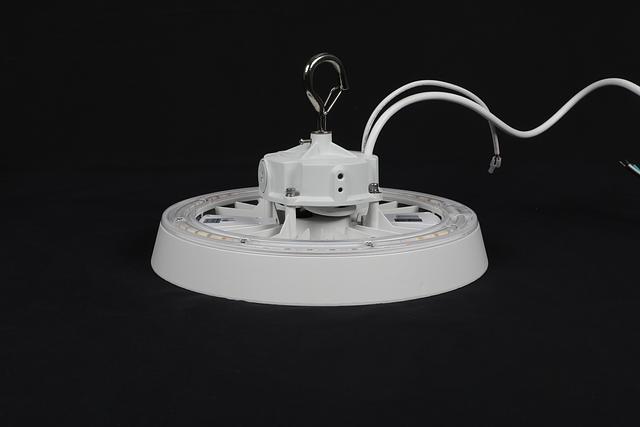

LL-RHBP (4).JPG

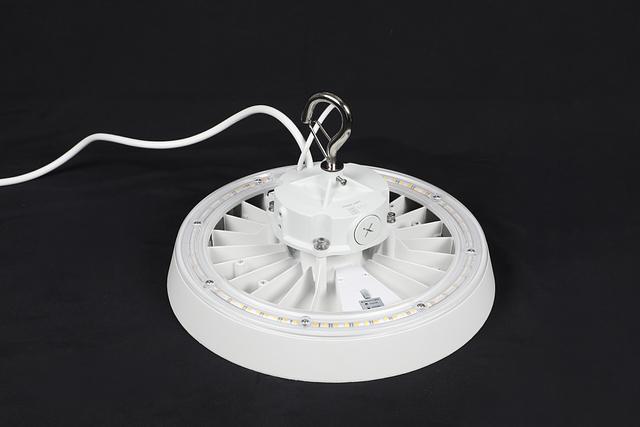

LL-RHBP (2).JPG

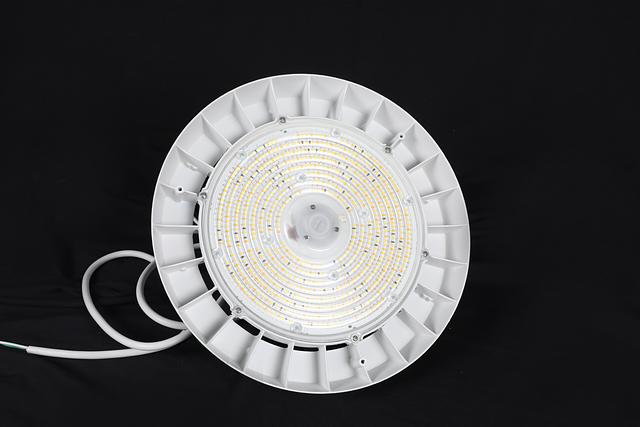

LL-RHBP (5).JPG

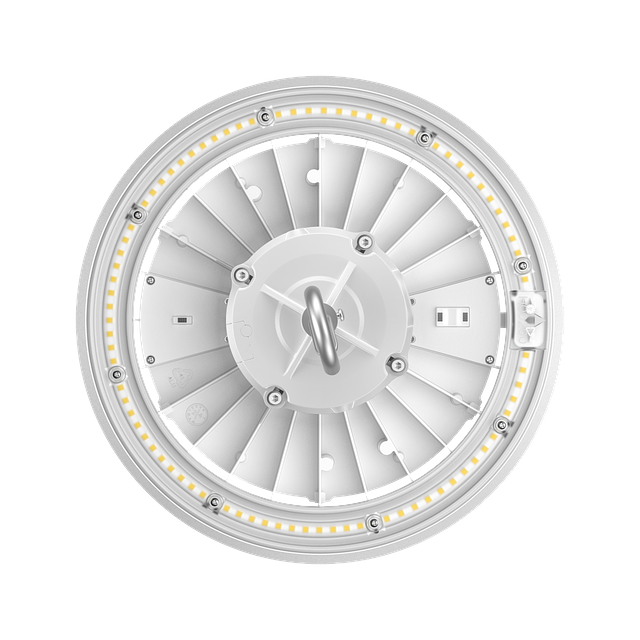

LL-RHBP_top view.png

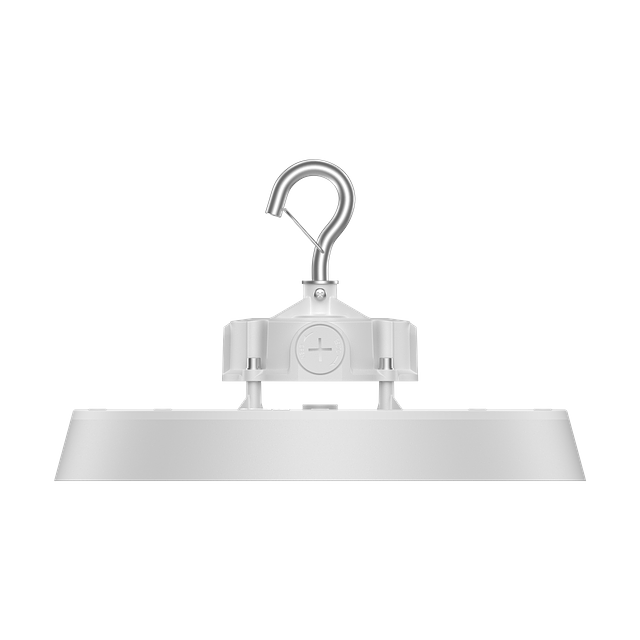

LL-RHBP_side view (2).png

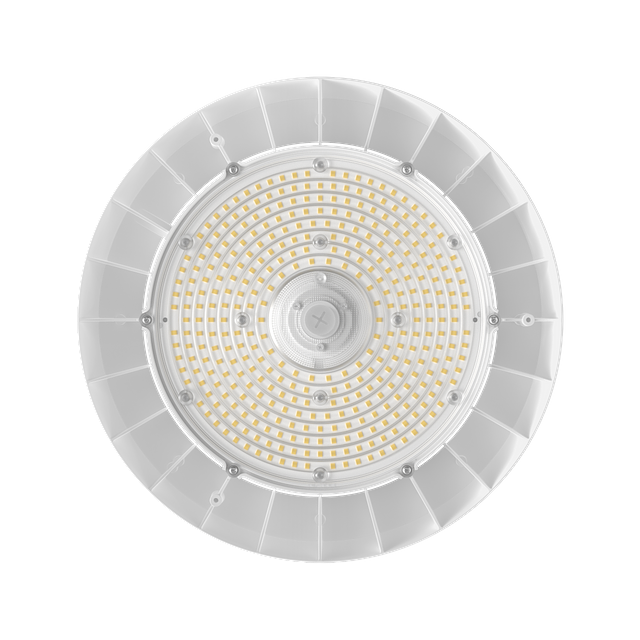

LL-RHBP_front view.png

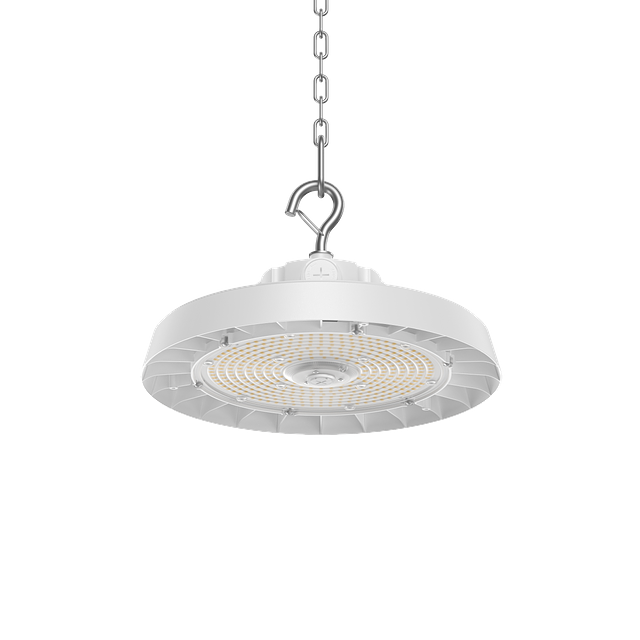

LL-RHBP-CHAIN.pngLL-RHBP
LED Retail High Bay Premium
The LITELUME LED Retail High Bay Premium (LL-RHBP) is specifically designed for high end retail environments or any application with aesthetic needs for overall superior quality light and looks. Featuring a stylish fresh look with up and down light ability. Specification grade retail & commercial lighting.
Resources
Specification Grade Aluminum alloyÂ
Protective powder coatÂ
Anti-Glare polycarbonateÂ
Protective powder coatÂ
Anti-Glare polycarbonateÂ
Premium Constant Current Driver
0-10v Dimming Standard
Standard Surge Protection 6kV Line-Line, 10kV Line-EarthÂ
Premium LED's 2835 Flicker Free SVM <.04; PST , < 1
170,000hrs L70B50
UGR 28Â
PF .92
THD <20%Â
CRI 80, CRI 90 Optional
10% UpLight / 90% Downlight, 100% downlight, Multiple beam angles
High Efficacy 170 LPW
Field Selectable 120W/160W/200WÂ
0-10v Dimming Standard
Standard Surge Protection 6kV Line-Line, 10kV Line-EarthÂ
Premium LED's 2835 Flicker Free SVM <.04; PST , < 1
170,000hrs L70B50
UGR 28Â
PF .92
THD <20%Â
CRI 80, CRI 90 Optional
10% UpLight / 90% Downlight, 100% downlight, Multiple beam angles
High Efficacy 170 LPW
Field Selectable 120W/160W/200WÂ
Lead time Information
Built to order 5 - 6 weeks
LED Round High Bay Lights
Replaces 400W MH/PSMH
Replaces 320W MH/PSMH
Replaces 250W MH/PSMH
Lumens
- 20400 Lm
- 34000 Lm
Watts
- 120 w
- 160 w
- 200 w
Weight
- 5 lbs
Beam Angle
- 60
- 85
- 115
- 150
CRI
- 80 CRI
- 90 CRI
CCT
- 4000K
- 5000K
Color / Finish
- Black
- Custom
- White
Controls Options
- Bi-level Dimming
- Daylight Occupancy Sensor
- Daylight Sensor
- Luminaire-Level Lighting Controls
- Motion Sensor
- Occupancy Sensor
- Wired Control
Dimensions
- H: 7.65 In. L: 12.6 In. W: 12.6 In.
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
Distribution
- Medium
- Narrow/Aisle
- Wide
Efficacy
- 170 lm/w
Lamp Life
- 170000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Mounting
- Ceiling
- Hanging
Emergency Options

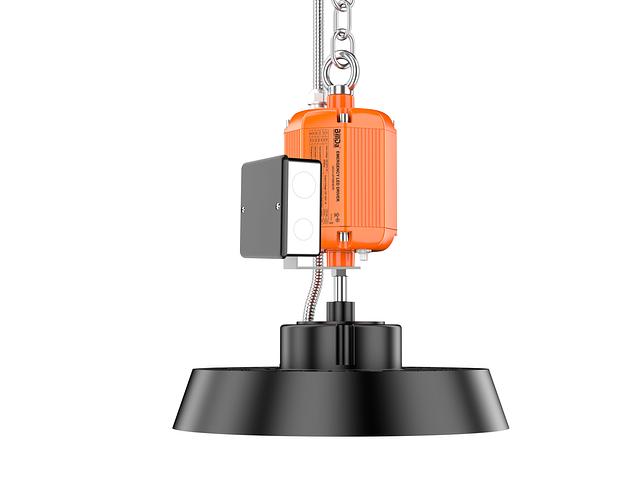

- Emergency Battery Backup
Ratings & Compliance
- IK08
- IP65
- Wet
Shape
- Round
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
