LED Highbay Linear Full Body

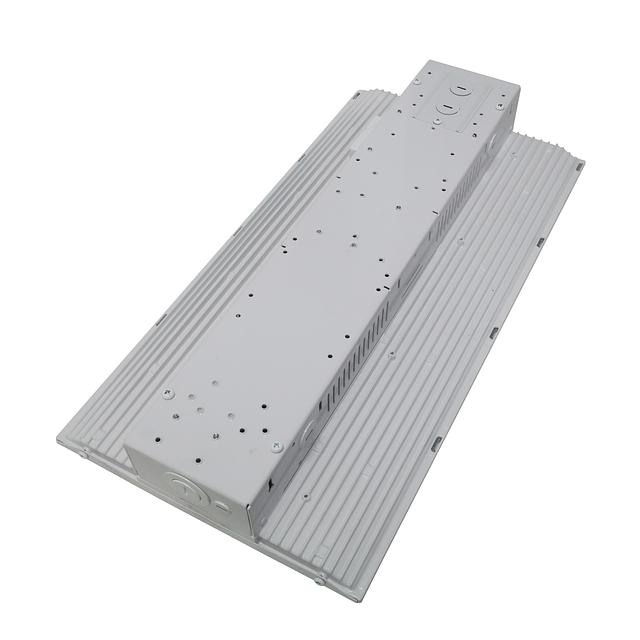

Premium powder-coat, die cast aluminum, white housing.
Polycarbonate prismatic lens.

Operating temperature (ambient):
-40°C to 55°C (-40°F to 131°F) for LL-HBLFB-18L and LL-HBLFB-24L.
-40°C to 50°C (-40°F to 122°F) for LL-HBLFB-36L and LL-HBLFB-60L.
Universal 120-277V AC voltage (50-60Hz) is standard.
120-277V standard, 347-480V achieved with step-down transformer.
0-10VDC dimming drivers are standard.
Emergency driver option available.
Input transient surge protection = 6kV.
PF > 0.9 ; THD < 20%.

Field selectable 4000k and 5000k color temperatures
Tri-lumen selectable delivers 12,000 to 60,000 nominal lumens

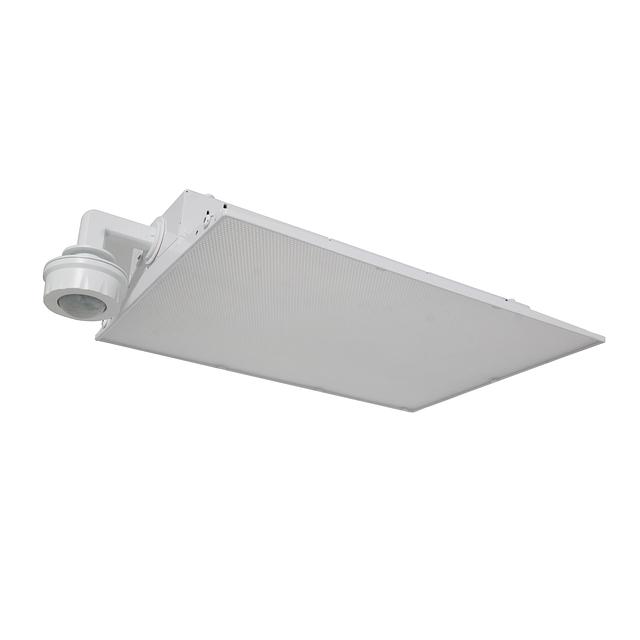

Screw in sensor ready. Sensor and remote control sold separately.
Remote control required to change factory sensor settings
Long-life LEDs provide 135,000 hours of operation with at least 70% of initial lumen output (L70), and 41,000 hours with at least 90% of initial lumen output (L90)
LED color maintenance < 0.003 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
Color rendering index > 80%

Chain-mount kits (includes v-hooks , 1-meter long chain) are standard.
Optional surface mounting kit provides attachment to solid surfaces*.
Optional pendant mounting kit provides pendant attachment to 1/2” rigid
conduit*.
Optional cable mount kit provides luminaire suspension.

*Surface mount kit and Pendant mount kit are not compatible with the 480V StepDown Transformer option,
or the on-board, factory installed EM driver option

QuickShip Ordering Information
LL-HBLFB-18L-UNV-SCT-SP-WH
LL-HBLFB-24L-UNV-SCT-SP-WH
LL-HBLFB-36L-UNV-SCT-SP-WH
LL-HBLFB-60L-UNV-SCT-SP-WH
LL-HBLFB-18L-480-SCT-SP-WH
LL-HBLFB-24L-480-SCT-SP-WH
LL-HBLFB-36L-480-SCT-SP-WH
LL-HBLFB-60L-480-SCT-SP-WH
