LL-PTL
Screen Shot 2023-12-12 at 2.24.38 PM.png
Screen Shot 2023-12-12 at 2.24.42 PM.png
Screen Shot 2023-12-12 at 2.24.46 PM.png
LL-PTL-WH-DOWN.jpgLL-PTL

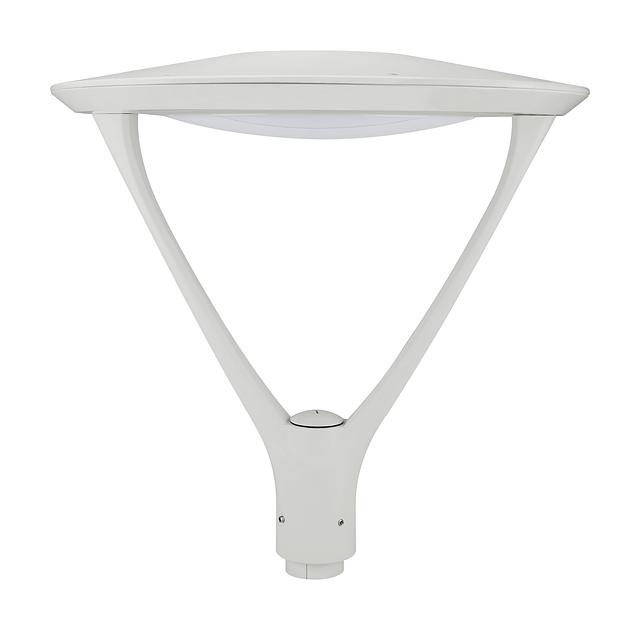

Led Post Top Luminaire
The LITELUME™ Area Light Post Top Luminaire (LL-PTL) combines beauty and performance with it’s fresh urban style. Featuring a die-cast aluminum housing with outstanding corrosion protection. Compact in design low profile dark sky rated with soft light. Suitable for mounting heights of 8-20’ makes this aesthetically pleasing an excellent choice for pathway, walkway, municipality and general lighting applications. .
Resources
QuickShip Ordering Information
LL-PTL-[45][70][87][130]-3CCT-UNV-T5-BZ
LL-PTL-[45][70][87][130]-3CCT-UNV-T5-BK
LL-PTL-[45][70][87][130]-3CCT-UNV-T5-BK
LL-PTL-[45][70][87][130]-3CCT-UNV-T5-WH
Lumens
- 1580 Lm
- 5400 Lm
- 5450 Lm
- 8400 Lm
- 8500 Lm
- 10400 Lm
- 10600 Lm
- 15600 Lm
- 15800 Lm
Watts
- 45 w
- 70 w
- 87 w
- 130 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Gray
- White
Controls Options
- Photocell
Distribution
- Type V
Lamp Life
- 100000 hrs
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- Buy American Act (BAA)
- DLC
- Dark Sky
- IP66
- Title 24
- Wet
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
