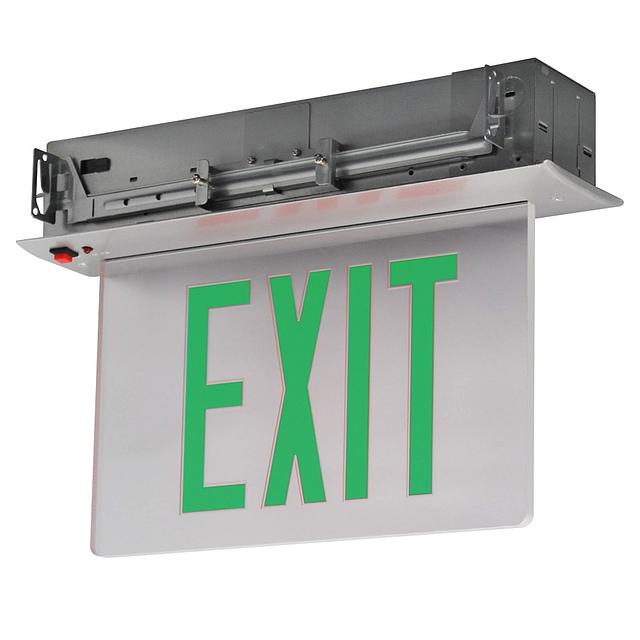

LED Recessed Edgelit Aluminum Exit Sign
Ultra bright, energy efficient, long life Red or Green LEDs. UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination. Double face utilizes factory installed silver or white mylar background panel.
Resources
Premium-grade, extruded aluminum housing
Extruded aluminum trim assembly is easily detachable, providing accessibility for service or maintenance
Available in optional black or white powder-coated finishes
Self-adhesive Chevron appliques and guide template provided for directional indication
Custom Wording Available
Extruded aluminum trim assembly is easily detachable, providing accessibility for service or maintenance
Available in optional black or white powder-coated finishes
Self-adhesive Chevron appliques and guide template provided for directional indication
Custom Wording Available
Dual 120V/277 voltage.
Charge rate/power “ON” LED indicator light and push to-test switch for mandated code compliance testing
4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only)
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 120-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
Charge rate/power “ON” LED indicator light and push to-test switch for mandated code compliance testing
4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only)
Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 120-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
BAA & BABA Compliant when selecting the "assembled in USA option"

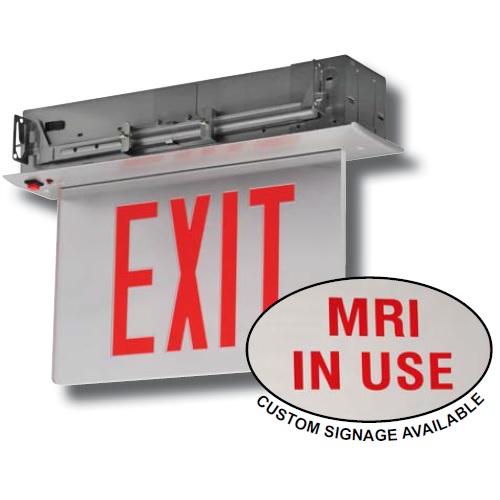

LED Recessed Edgelit Aluminum Exit Sign With Custom Wording
LED Recessed Edgelit Aluminum Exit Sign With Custom Wording
Color / Finish
- Black
- Custom
- White
Emergency Type
- Exit Signs
Lamp Source
- LED
Listings
- UL
Ratings & Compliance
- Buy American Act (BAA)
- Damp
- NFPA 101
- Title 20
Special Programs
- Quick Ship
Static LED Color
- Green
- Red
Voltage
- 120 V
- 277 V
Warranty
- 7 yr
