LL-CYL-S
LL-CYL-6.pngLL-CYL-S

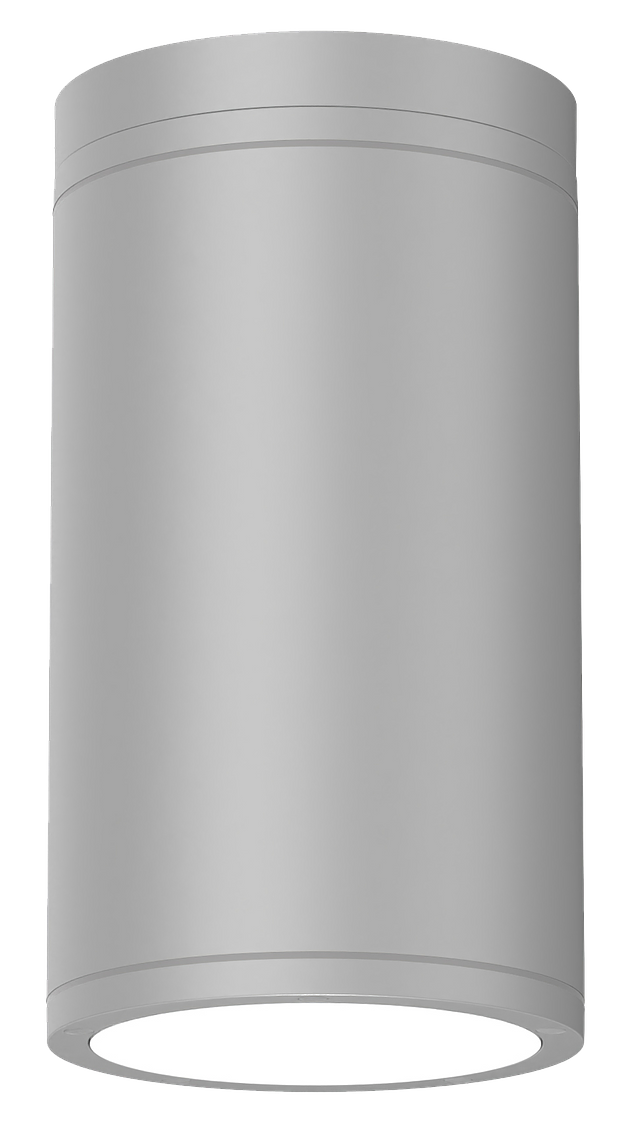

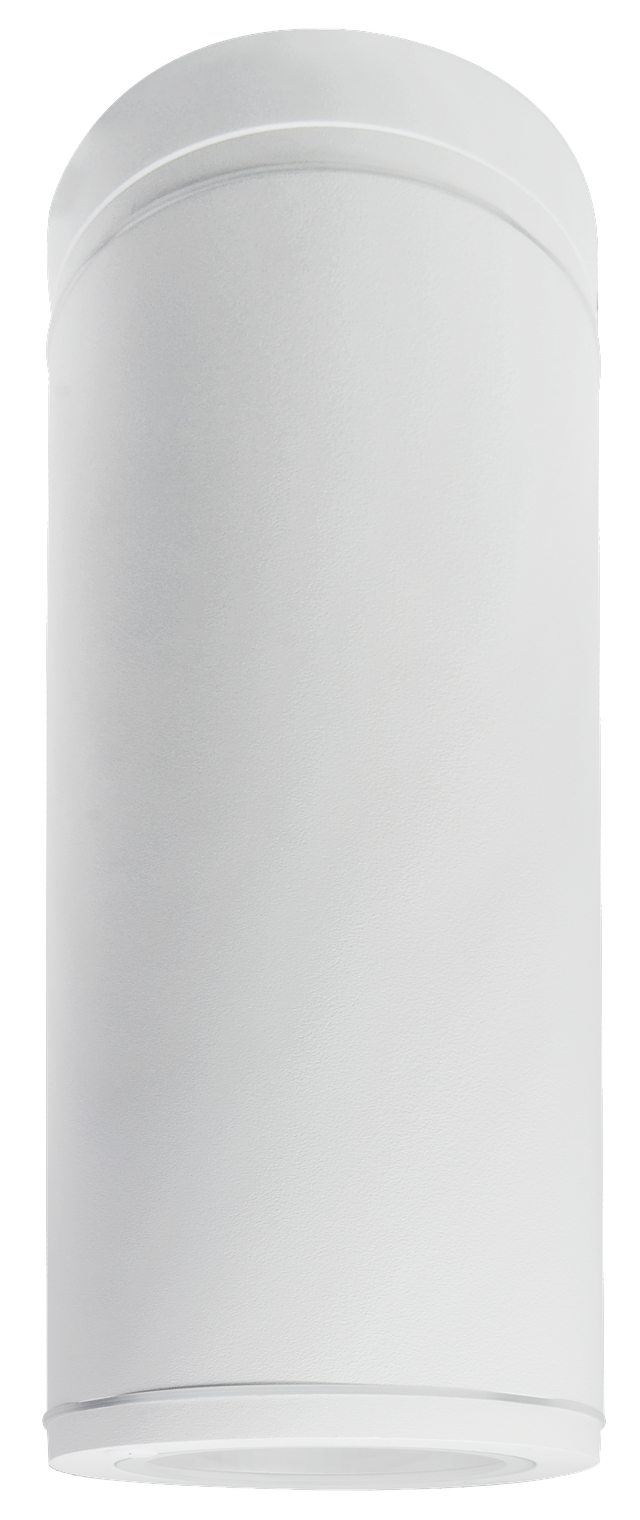

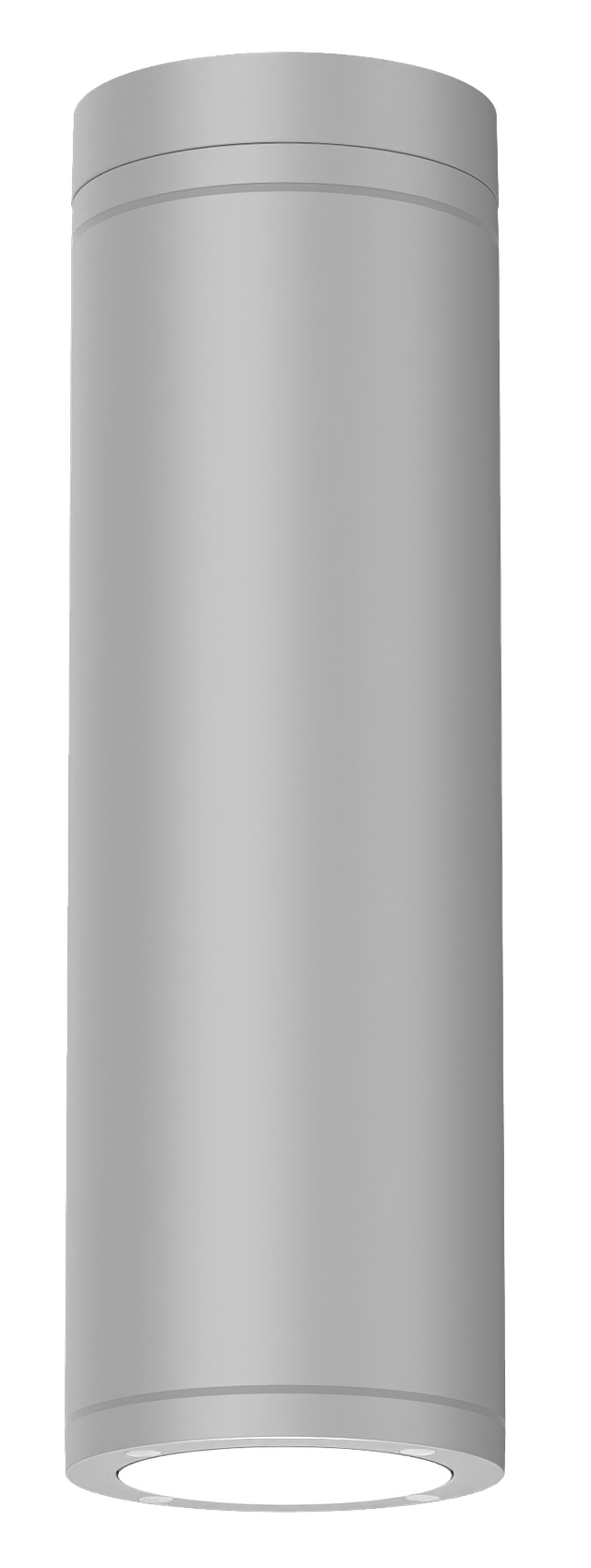

Cylinder Small
The LITELUME™ LED Cylinder Small (LL-CYL-S) is a specification grade field adjustable Downlight luminaire designed for retrofit or new construction. Available in 3”, 4”, and 6” diameters. Featuring 3 color adjustable CCT, allowing for customized energy savings and comfortability.
Applications include hospitals, schools, restaurants, offices, hallways, conference rooms, bathrooms and many other commercial, residential & Hospitality areas.
Resources
QuickShip Ordering Information
LL-CYL-S-4-DM-20-3CCT-UNV-75D-BK
LL-CYL-S-6-DM-33-3CCT-UNV-75D-BK
LL-CYL-L-8-SC-[30][45][55]-3CCT-UNV-75D-BK
LL-CYL-L-10-SC-[75][95][105]-3CCT-UNV-75D-BK
LL-CYL-S-4-DM-20-3CCT-UNV-75D-BK
LL-CYL-S-6-DM-33-3CCT-UNV-75D-BK
LL-CYL-L-8-SC-[30][45][55]-3CCT-UNV-75D-BK
LL-CYL-L-10-SC-[75][95][105]-3CCT-UNV-75D-BK
Lumens
- 1559 Lm
- 2542 Lm
- 4571 Lm
Watts
- 13 w
- 20 w
- 33 w
Beam Angle
- 45
- 75
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Grey
- White
Dimming Protocol
- 0-10 V
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Glass
Mounting
- Pendant
Ratings & Compliance
- Wet
Voltage
- 120-277 V
Warranty
- 10 yr
