LL-HBRHV

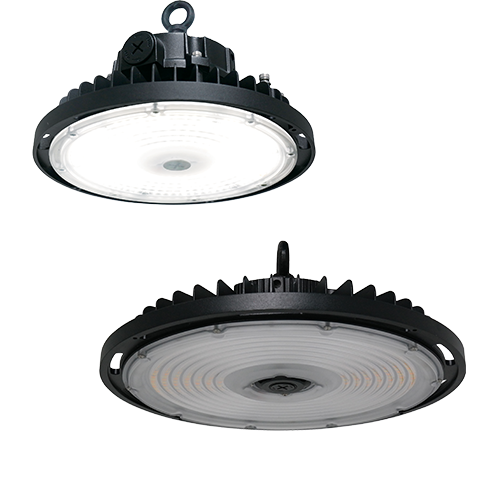

LL-HBRHV-BK-2.pngLL-HBRHV

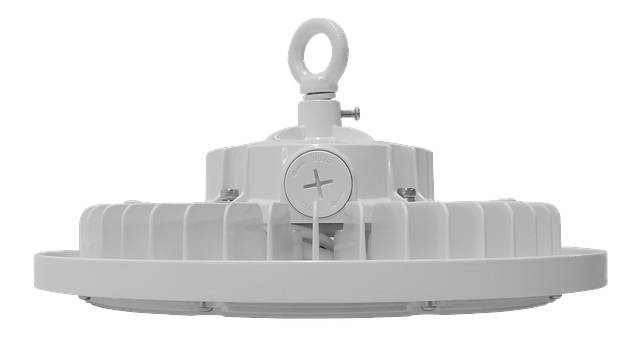

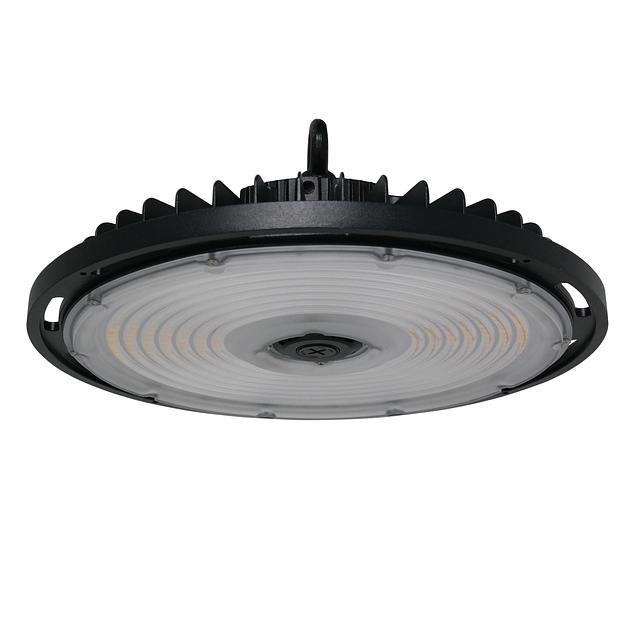

LED High Bay Round High Voltage
The LITELUMEā¢ LED High Bay Round High Voltage (LL-HBHV) is a premium round LED high bay luminaire for industrial applications where high voltage 277-480V is required. This versatile fixture features field selectable CCT and Power, offering output from 16,000 to 35,000 nominal lumens and 3 CCT ( 3000K/4000K/5000K ). Plug and Play Audio jack Sensor-ready for easy field installation. Featuring a robust stylish design while upholding maximum durability and reliability.
Applications include Education, Fitness Centers, Food Processing, Distribution Centers, Wet Locations, Grocery, Gymnasiums, Manufacturing Plants, and Warehouses.
Applications include Education, Fitness Centers, Food Processing, Distribution Centers, Wet Locations, Grocery, Gymnasiums, Manufacturing Plants, and Warehouses.
Resources
Premium powder-coat
Die cast aluminum
Black or White housing
Polycarbonate lens
Suspension from eyebolt (included) is standard.
Ceiling-mounted installation using optional yoke mounting bracket, provides adjustable aiming.
Two ways to mount luminaire to electrical conduit:
ā¢ Attach conduit (1/2ā NPS) to optional yoke mounting bracket.
ā¢ Optional pendant snap hook (for use with 3/4ā NPS).
Die cast aluminum
Black or White housing
Polycarbonate lens
Suspension from eyebolt (included) is standard.
Ceiling-mounted installation using optional yoke mounting bracket, provides adjustable aiming.
Two ways to mount luminaire to electrical conduit:
ā¢ Attach conduit (1/2ā NPS) to optional yoke mounting bracket.
ā¢ Optional pendant snap hook (for use with 3/4ā NPS).
Operating temperature (ambient): -40Ā°C to 50Ā°C (-40Ā°F to 122Ā°F).
Universal 277-480V high voltage (50-60Hz) is standard.
0-10VDC dimming drivers are standard.
Consult your representative for Emergency back-up options available.
Incoming AC power cord = 6ā. Incoming dimming cord = 6ā.
Watertight, compression-type electrical connectors.
Input transient surge protection = 6kV.
Power factor > 0.90.
Total harmonic distortion < 20%.
Premium LED's
Ultra efficient driver
Field selectable 3000k. 4000k and 5000k color temperatures
LL-HBRHV-23L provides a range of 15,094 to 23,100 nominal lumensĀ
LL-HBRHV-36L provides a range of 22,629 to 36,442 nominal lumensĀ
Plug and Play sensor ready. Sensor and remote control sold separately. Remote control required to change factory sensor settings
Long-life LEDs provide 167,000 hours of operation with at least 70% of initial
lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90)
LED color maintenance < 0.003 chromaticity shift (Īuāvā) over the initial 6,000 hours of operation.
Color rendering index > 80.
Universal 277-480V high voltage (50-60Hz) is standard.
0-10VDC dimming drivers are standard.
Consult your representative for Emergency back-up options available.
Incoming AC power cord = 6ā. Incoming dimming cord = 6ā.
Watertight, compression-type electrical connectors.
Input transient surge protection = 6kV.
Power factor > 0.90.
Total harmonic distortion < 20%.
Premium LED's
Ultra efficient driver
Field selectable 3000k. 4000k and 5000k color temperatures
LL-HBRHV-23L provides a range of 15,094 to 23,100 nominal lumensĀ
LL-HBRHV-36L provides a range of 22,629 to 36,442 nominal lumensĀ
Plug and Play sensor ready. Sensor and remote control sold separately. Remote control required to change factory sensor settings
Long-life LEDs provide 167,000 hours of operation with at least 70% of initial
lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90)
LED color maintenance < 0.003 chromaticity shift (Īuāvā) over the initial 6,000 hours of operation.
Color rendering index > 80.
QuickShip Ordering Information
LL-HBRHV-23L-HV-SCT-SP-WH
LL-HBRHV-36L-HV-SCT-SP-WH
LL-HBRHV-23L-HV-SCT-SP-BK
LL-HBRHV-36L-HV-SCT-SP-BK
LL-HBRHV-23L-HV-SCT-SP-WH
LL-HBRHV-36L-HV-SCT-SP-WH
LL-HBRHV-23L-HV-SCT-SP-BK
LL-HBRHV-36L-HV-SCT-SP-BK
Weight
- 5
- 7
Availability
- Quick Ship
CRI
- 80
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- White
Controls Options
- Bi-level Dimming
- Bluetooth
- Daylight Occupancy Sensor
- Daylight Sensor
- Microwave Sensor
- Motion Sensor
- Occupancy Sensor
- PIR Sensor
- Synapse
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- Synapse
Efficacy
- 167
Lamp Life
- 167000
Lamp Source
- LED
Listings
- UL
- cULus
Materials
- Aluminum
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Pendant
- Yoke
Emergency Options
- Remote EM Battery
Ratings & Compliance
- Exterior
- IK09
- IP65
- Interior
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Voltage
- 277-480 V
Warranty
- 10 yr
