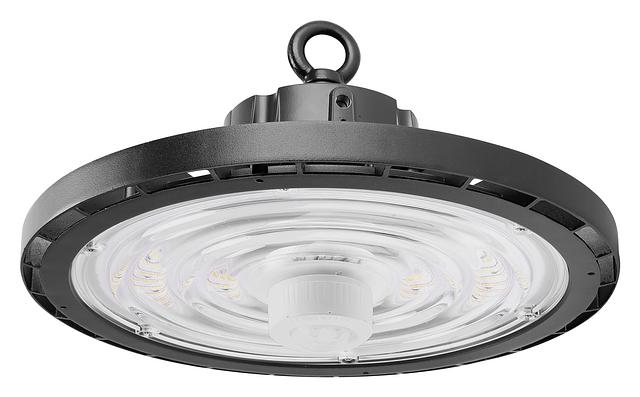

LL-HBRE-24L Sensor-Side1.jpg

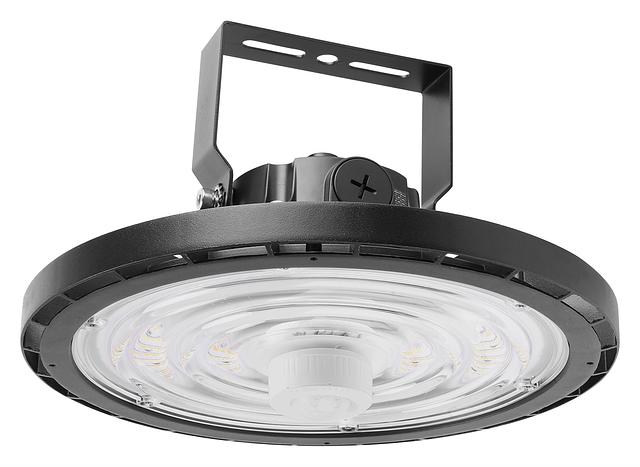

LL-HBRE-24L U-BRACKET-Side1.jpg

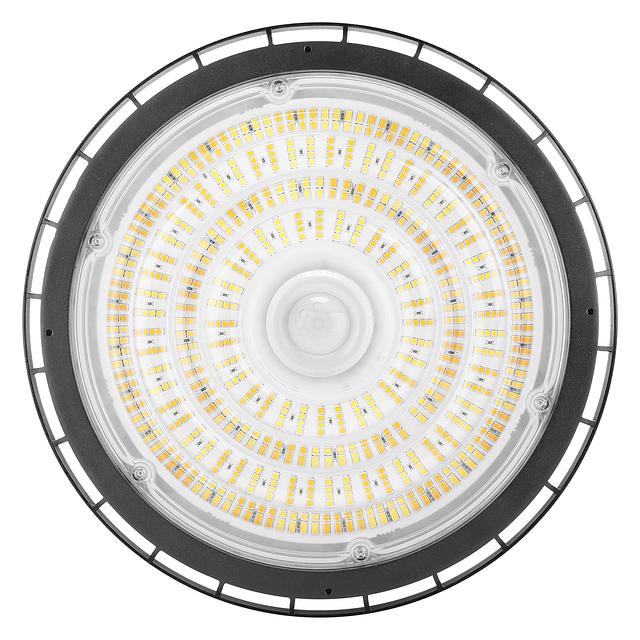

LL-HBRE-24- SENSOR-Front.jpg

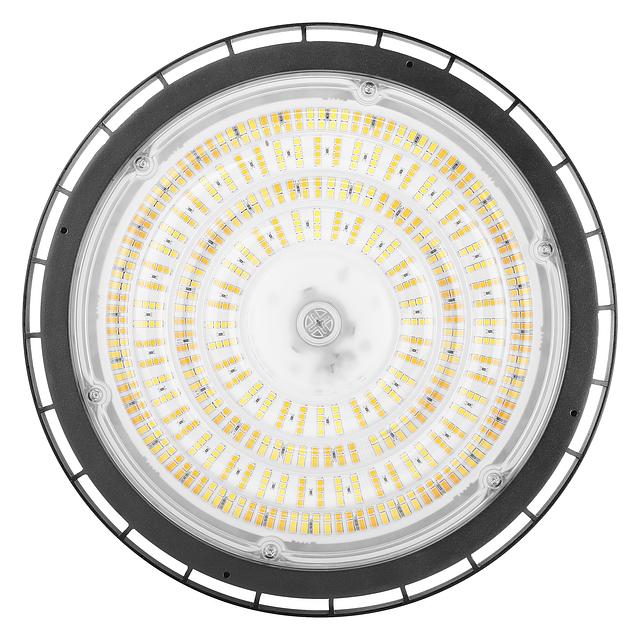

LL-HBRE-24L-Front.jpgLL-HBRE
LED High Bay Round Elite
The LITELUMEā¢ LED High Bay Round Elite (LL-HBRE) Features the most up to date new technology, including field selectable color temperature, selectable power, and selectable beam angle distribution. This elite luminaire is constructed with a IP65, NSF rated die cast housing suitable for both indoor and outdoor use. Incorporating a stylish design while upholding maximum durability and reliability. Controls ready.Ā
Applications include Education, Fitness Centers, Food Processing, Distribution Centers, Wet Locations, Grocery, Gymnasiums, Manufacturing Plants, and Warehouses.
Applications include Education, Fitness Centers, Food Processing, Distribution Centers, Wet Locations, Grocery, Gymnasiums, Manufacturing Plants, and Warehouses.
Resources
Robust Durable Sealed Die Cast Aluminum
Reliable Performance with Advanced Thermal Management
Protected Powder Coat
Enhance Visual Comfort with Limited Glare Anti-UV Prismatic Translucent Lens
IP65
NSF
Simple installation with standard Ring Mount or optional Pendant Mount, or U-Bracket.
Standard: 6' Power Cord
Reliable Performance with Advanced Thermal Management
Protected Powder Coat
Enhance Visual Comfort with Limited Glare Anti-UV Prismatic Translucent Lens
IP65
NSF
Simple installation with standard Ring Mount or optional Pendant Mount, or U-Bracket.
Standard: 6' Power Cord
Premium LED's
Ultra efficient driver
Standard Surge protection 6kV
PF .90
CRI 80
THD <20%
High Efficacy up to 178 lm/W
Field Selectable Lumen Package 13,600 to 50,000 lm
Field Selectable Color Temperature 3500K/4000K/5000K
Field Selectable Distribution Beam Angles 70/90/110 Degrees
Universal 120-277V or 277-480V
0-10V dimming standard for a dimming range of 100% to 10%.
Controls Ready
Optional Emergency battery Backup ( 120-277v only )
Ultra efficient driver
Standard Surge protection 6kV
PF .90
CRI 80
THD <20%
High Efficacy up to 178 lm/W
Field Selectable Lumen Package 13,600 to 50,000 lm
Field Selectable Color Temperature 3500K/4000K/5000K
Field Selectable Distribution Beam Angles 70/90/110 Degrees
Universal 120-277V or 277-480V
0-10V dimming standard for a dimming range of 100% to 10%.
Controls Ready
Optional Emergency battery Backup ( 120-277v only )
UGR<28
Operating Temperature Range: -40Ā°C to 55Ā°C(-40ĖF- + 131ĖF)
IK08
NSF
UL cUL wet location listed.
Operating Temperature Range: -40Ā°C to 55Ā°C(-40ĖF- + 131ĖF)
IK08
NSF
UL cUL wet location listed.
Food zone, splash zone, and non-food zone.
QuickShip Ordering Information
LL-HBRE-24L-UNV-SCT-SP-SD-BK
LL-HBRE-32L-UNV-SCT-SP-SD-BK
LL-HBRE-41L-UNV-SCT-SP-SD-BK
LL-HBRE-50L-UNV-SCT-SP-SD-BK
LL-HBRE-32L-UNV-SCT-SP-SD-BK
LL-HBRE-41L-UNV-SCT-SP-SD-BK
LL-HBRE-50L-UNV-SCT-SP-SD-BK
LED Round High Bay Lights, LED UFO
Replaces 1000W MH/PSMH
Replaces 750W MH/PSMH
Replaces 575W MH/PSMH
Replaces 400W MH/PSMH
Replaces 320W MH/PSMH
Replaces 250W MH/PSMH
Replaces 175W MH/PSMH
Replaces 150W MH/PSMH
Replaces 100W MH/PSMH
Availability
- In Stock
- Quick Ship
Beam Angle
- 70
- 90
- 110
CRI
- 80
CCT
- Field Selectable CCT
- 3500K
- 4000K
- 5000K
Color / Finish
- Black
Controls Options
- Bi-level Dimming
- Bluetooth
- Daylight Harvesting
- Daylight Occupancy Sensor
- Daylight Sensor
- Dimmable
- High Frequency Microwave
- Luminaire-Level Lighting Controls
- Microwave Sensor
- Motion Sensor
- Network Wireless Control
- Occupancy Sensor
- PIR Sensor
- Passive Infrared
- Synapse
- Wireless Control
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- Synapse
Distribution
- Medium
- Narrow/Aisle
- Wide
Efficacy
- 175
Lamp Life
- 100000
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Bracket
- Pendant
- Surface
- Suspended
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Exterior
- IK08
- IP65
- Interior
- Low UGR
- NSF
- TAA
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
- 277-480 V
Warranty
- 10 yr
