LL-SLP (G3)
C3BK-QC.jpgLL-SLP (G3)
LED Sports Lighter Premium Generation 3
The LITELUME™ Sportlume Series Sports Lighter Premium Generation 3 (LL-SLP) incorporates an updated optional Remote Power System, eliminating the need for a bucket truck for maintenance and provides flexibility of installation. The LED package, premium driver, built in surge suppression, laser site guide along with upgraded dynamic thermal management are all standard. Featuring a beautiful solid state diecast aluminum body, with a premium patented design, 3G vibration rated, specifically tailored for sports field applications. Controls Ready.
Resources
Photometry
- LL-SLP-600-40-4x4.ies
- LL-SLP-600-50-4x4.ies
- LL-SLP-600-57-4x4.ies
- LL-SLP-600-40-3x3.ies
- LL-SLP-600-50-3x3.ies
- LL-SLP-600-57-3x3.ies
- LL-SLP-850-40-4X4.ies
- LL-SLP-850-50-4X4.ies
- LL-SLP-850-57-4X4.ies
- LL-SLP-850-40-3X3.ies
- LL-SLP-850-50-3X3.ies
- LL-SLP-850-57-3X3.ies
- LL-SLP-1200-40-4X4.ies
- LL-SLP-1200-50-4X4.ies
- LL-SLP-1200-57-4X4.ies
- LL-SLP-1200-40-3X3.ies
- LL-SLP-1200-50-3X3.ies
- LL-SLP-1200-57-3X3.ies
- LL-SLP-1200-40-2X2.ies
- LL-SLP-1200-50-2X2.ies
- LL-SLP-1200-57-2X2.ies
Heavy Duty Die-cast Aluminum Housing
Protective powder coat
Protective powder coat
Ultra High Efficiency Premium driver 95%
Isolated 0-10V/PWM/3-Timer-Modes
Dimmable Always-on Auxiliary Power
12Vdc Controls ready Input
Surge Protection: DM 6kV, CM 10kV
IP67 and UL Wet / Dry / Damp Location Driver with Built in surge suppression max 40KV
5050 Premium LED's
4HX4V Narrow Flood
3HX3V Medium Spot
2HX2V Narrow Spot
Wireless Synapse controls available
Isolated 0-10V/PWM/3-Timer-Modes
Dimmable Always-on Auxiliary Power
12Vdc Controls ready Input
Surge Protection: DM 6kV, CM 10kV
IP67 and UL Wet / Dry / Damp Location Driver with Built in surge suppression max 40KV
5050 Premium LED's
4HX4V Narrow Flood
3HX3V Medium Spot
2HX2V Narrow Spot
Wireless Synapse controls available
QuickShip Ordering Information
LL-SLP-850-57-480-BK
LL-SLP-1200-57-480-BK

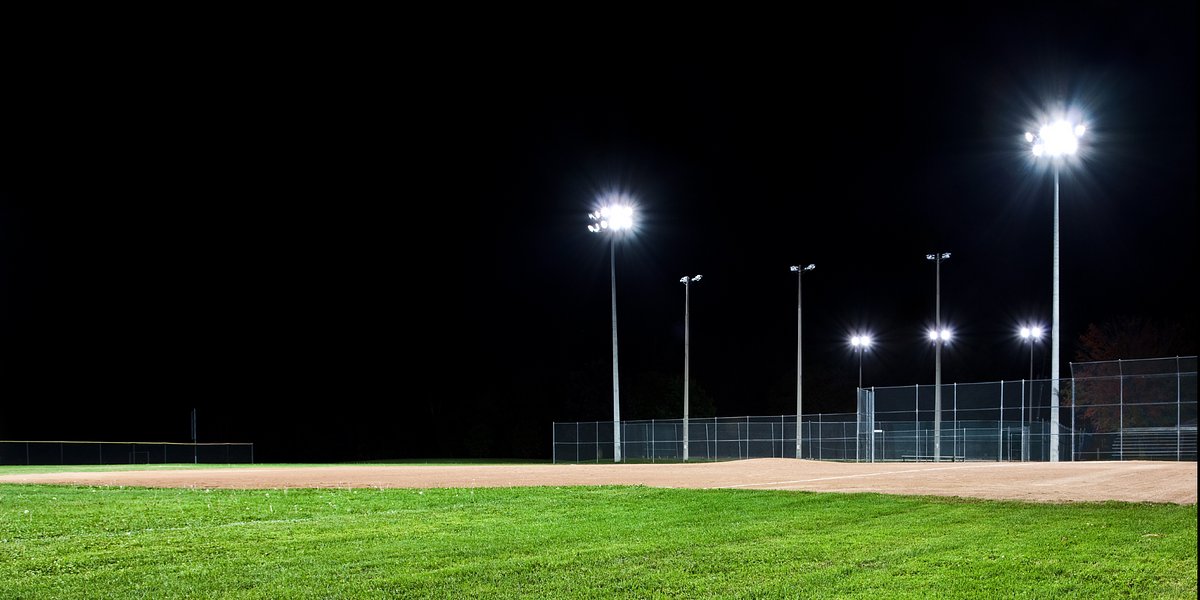

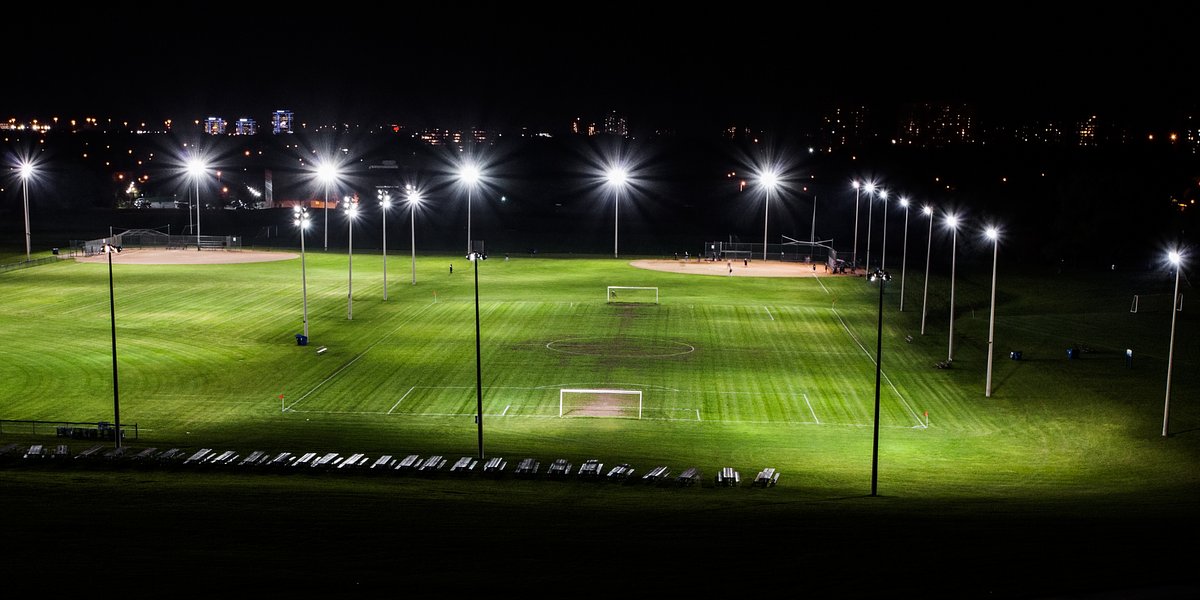

LED Sports Lighting for Stadium Lights, Football Field, Baseball Field, Soccer Field, Softball Field, Tennis Court, Pickleball, Sports Field, High Mast, Arena, Rec Centers
LL-SLP-850-57-480-BK
LL-SLP-1200-57-480-BK
LED Sports Lighting for Stadium Lights, Football Field, Baseball Field, Soccer Field, Softball Field, Tennis Court, Pickleball, Sports Field, High Mast, Arena, Rec Centers
Replaces 1500W MH/PSMH
Replaces 1000W MH/PSMH
Replaces 750W MH/PSMH
Replaces 575W MH/PSMH
Replaces 400W MH/PSMH
Personalized Design
IES Class of Play 1
IES Class of Play 2
IES Class of Play 3
IES Class of Play 4
Lighting Systems & Controls
Lumens
- 97500 Lm
- 165000 Lm
Watts
- 650 w
- 850 w
- 1200 w
Beam Angle
- 3x3
- 4x4
CRI
- 70 CRI
CCT
- 4000K
- 5000K
- 5700K
Color / Finish
- Black
Dimming Protocol
- 0-10 V
- Synapse
Distribution
- Medium
- Medium Narrow
- Medium Wide
- Narrow
Efficacy
- 140 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Mounting
- Bracket
- Post Top
Ratings & Compliance
- Buy American Act (BAA)
- DLC
- IP65
- TAA
- Title 24
- Wet
Shape
- Round
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 480 V
Warranty
- 10 yr
EPA Rating
- 2.54
