LL-LH2HL/LL-LH4HLLL-LH2HL/LL-LH4HL
LED Linear H2/H4 Hazardous Location

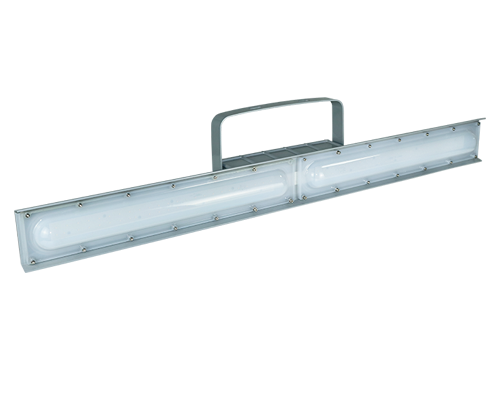

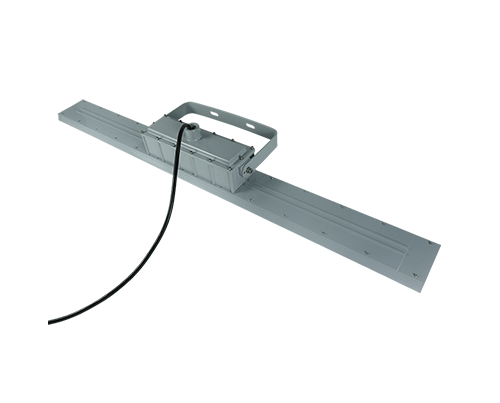

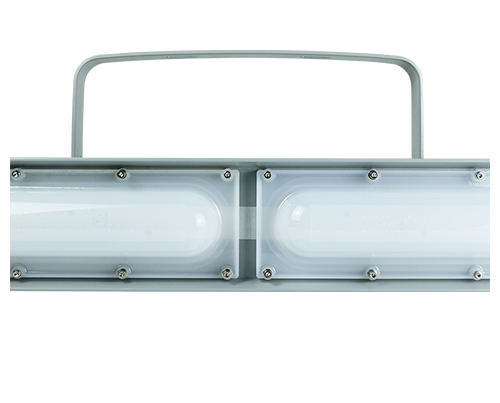

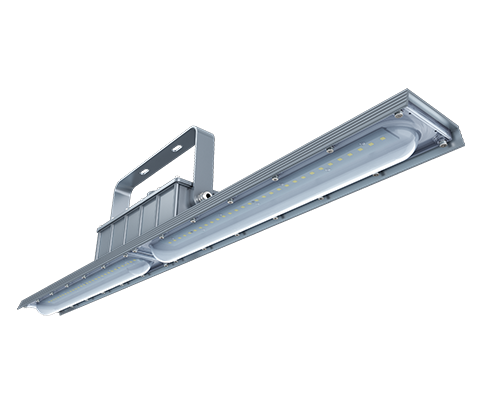

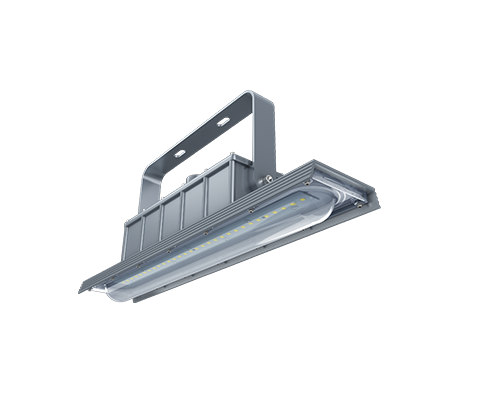

The LITELUME™ Linear H2/H4 Hazardous Location (LL-LH2HL/LL-LH4HL) Class 1, Division 2 series luminaire is available with a heavy duty impact resistant polycarbonate lense and comes in 2’ and 4’ lengths. Designed to replace HID lighting systems up to 250w MH or HPS. Typical lighting applications include industrial facilities, oil, gas, painting facilities, and auto service facilities. Mounting heights of 18 to 30 feet can be used based on light level and uniformity requirements.
Resources
Die-cast Aluminum Housing
Powder Coat Finish Over a Chromate Conversion Coating

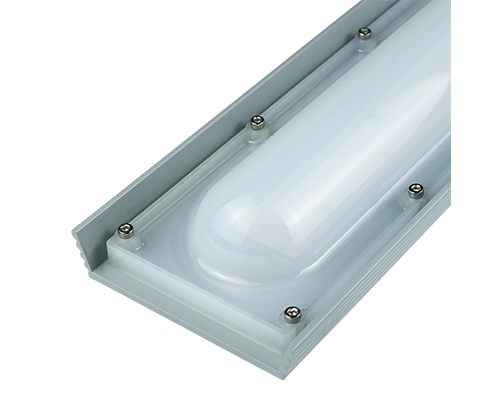

Polycarbonate Lens
3G Vibration Rated
Powder Coat Finish Over a Chromate Conversion Coating
Polycarbonate Lens
3G Vibration Rated
Premium LED's
Premium Meanwell Driver
PF .90
CRI 80
THD <20%
High Efficacy up to 140 lm/W
Standard 0-10v Dimming
NEMA 4X
IP66
IK08
UL1598 and UL1598A
UL844
CSA C22.2 No.137/No.250.0
Class l, Division 2, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 2, Division 2, Groups F, G
Class 3
Marine and Wet Locations
IECEX
ATEX
Premium Meanwell Driver
PF .90
CRI 80
THD <20%
High Efficacy up to 140 lm/W
Standard 0-10v Dimming
NEMA 4X
IP66
IK08
UL1598 and UL1598A
UL844
CSA C22.2 No.137/No.250.0
Class l, Division 2, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 2, Division 2, Groups F, G
Class 3
Marine and Wet Locations
IECEX
ATEX
QuickShip Ordering Information
LL-LH2HL-40-50-UNV-GY
LL-LH4HL-40-50-UNV-GY
LL-LH4HL-60-50-UNV-GY
LL-LH4HL-80-50-UNV-GY
LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
LED Hazardous Lights
LL-LH4HL-40-50-UNV-GY
LL-LH4HL-60-50-UNV-GY
LL-LH4HL-80-50-UNV-GY
LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
LED Hazardous Lights
Lumens
- 2660 Lm
- 2800 Lm
- 5320 Lm
- 5600 Lm
- 7980 Lm
- 8400 Lm
- 10640 Lm
- 11200 Lm
Watts
- 20 w
- 40 w
- 60 w
- 80 w
CRI
- 80 CRI
CCT
- 4000K
- 5000K
Color / Finish
- Gray
Industrial Type
- Hazardous Location
- Vapor Proof
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- ETL
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Surface
Emergency Options
- Integral EM Battery
Ratings & Compliance
- Class I Div II
- Class II Div II
- Class III
- Class III Div I
- Class III Div II
- IP66
- Industrial
- Marine
- NEMA 4X
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 277-480 V
- UNV
Warranty
- 10 yr
