LL-WPFQS

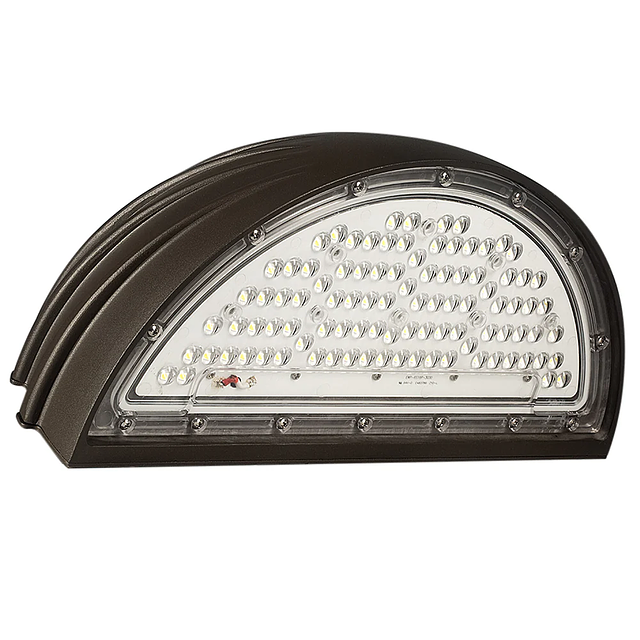

LL-WPFQS-BOTTOM.jpgLL-WPFQS
LED Wall Pack Football Quarter Sphere

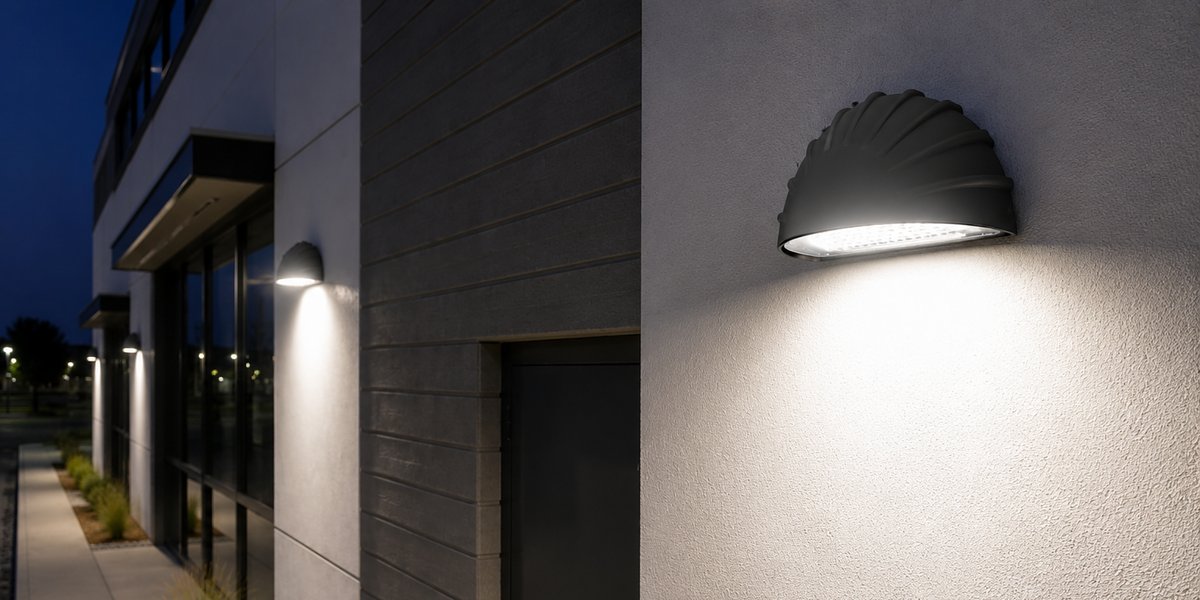

The LITELUME™ Wallpack Football Quarter Sphere (LL-WPFQS) is a mid-sized, aesthetically appealing Dark Sky LED fixture featuring medium wide 80 degree distribution. Applications: Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office.
Resources
Die-cast Aluminum
Protective Powder Coat
Polycarbonate Lens
Protective Powder Coat
Polycarbonate Lens
Die-cast Aluminum
Protective Powder Coat
Polycarbonate Lens
Protective Powder Coat
Polycarbonate Lens
Premium LED's
Ultra efficient driver
PF .95
CRI 80
THD <20%
Standard: 1-10v dimming
Operating temperature -22ºF ~ 113ºF
Standard Photocell
Ultra efficient driver
PF .95
CRI 80
THD <20%
Standard: 1-10v dimming
Operating temperature -22ºF ~ 113ºF
Standard Photocell
QuickShip Ordering Information
LL-WPFQS-6L-UNV-40-BZ-PC
LL-WPFQS-6L-UNV-50-BZ-PC
LL-WPFQS-9L-UNV-40-BZ-PC
LL-WPFQS-9L-UNV-50-BZ-PC
Package:
Packing size: 14.96x7.68x7.87 inch
Weight: 9 LBS
Pallet size: 42x48x60 inch Qty: 60 pcs
Total Weight: 570 LBS
Let's get ready for some Football
LED Wall Pack Lights
LED Dark Sky Outdoor Wall Lights
LED Full Cutoff Wall Packs
LL-WPFQS-6L-UNV-40-BZ-PC
LL-WPFQS-6L-UNV-50-BZ-PC
LL-WPFQS-9L-UNV-40-BZ-PC
LL-WPFQS-9L-UNV-50-BZ-PC
Package:
Packing size: 14.96x7.68x7.87 inch
Weight: 9 LBS
Pallet size: 42x48x60 inch Qty: 60 pcs
Total Weight: 570 LBS
Let's get ready for some Football
LED Wall Pack Lights
LED Dark Sky Outdoor Wall Lights
LED Full Cutoff Wall Packs
Lumens
- 6330 Lm
- 9446 Lm
Watts
- 45 w
- 70 w
Weight
- 8 lbs
Availability
- In Stock
- Quick Ship
Beam Angle
- 80
CRI
- 80 CRI
CCT
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- White
Dimensions
- H: 7.38 In. W: 14.6 In.
Dimming Protocol
- 1-10 V
Efficacy
- 140 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- DarkSky Approved
- Exterior
- IP65
- Wet
Shape
- Spherical
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
