LL-WPHRUD
Screen Shot 2023-12-12 at 2.21.48 PM.png
LL-WPHRUD-1.jpgLL-WPHRUD

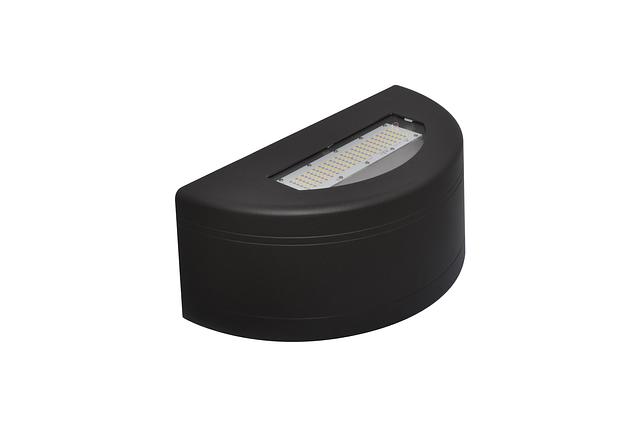

LED Wall Pack Half Round Up/Down

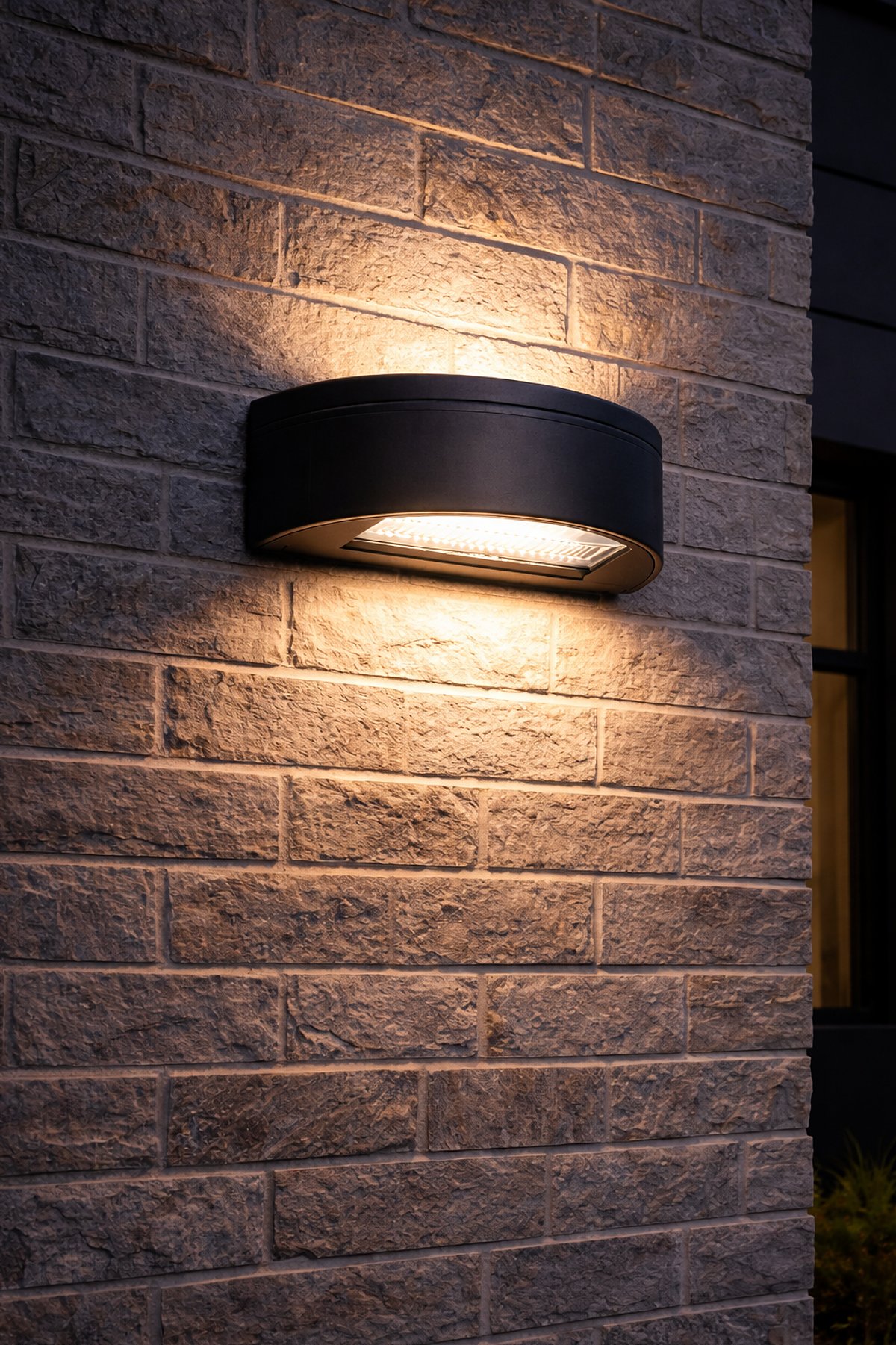

The Wall Pack Half Round Up/Down (LL-WPHRUD) is as elegant as it is functional. It provides multiple field-selectable lumen packages with 33% up light and 66% down light. Featuring high performance LEDs and a long lasting premium driver, this fixture provides effective lighting all around. Applications: Retail Malls, Restaurants, Auto Dealerships, Hospitals, Shopping Centers, Entryways, Tunnels, Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office, and General Hospitality.
Resources
Specification Grade
High Grade Die cast Aluminum
Striking Architectural Appeal
Tempered Glass Lens
User Friendly Quick Mount Bracket with Integrated Level Bub
High Grade Die cast Aluminum
Striking Architectural Appeal
Tempered Glass Lens
User Friendly Quick Mount Bracket with Integrated Level Bub
Premium New Generation LED's
Ultra efficient driver
6kV Standard Surge Protection
PF .90
CRI 80
THD <20%
Standard 0-10v continuous Dimming
Field Selectable Lumens 3,945 to 10,258 lm
Field Selectable CCT
33% Uplight
66% Downlight
L70 rated lifetime of 60,000 Hours
Calculated L70 of 100,000 Hours
Ultra efficient driver
6kV Standard Surge Protection
PF .90
CRI 80
THD <20%
Standard 0-10v continuous Dimming
Field Selectable Lumens 3,945 to 10,258 lm
Field Selectable CCT
33% Uplight
66% Downlight
L70 rated lifetime of 60,000 Hours
Calculated L70 of 100,000 Hours
QuickShip Ordering Information
LL-WPHRUD-40-50-UNV-BZ
LL-WPHRUD-40-40-UNV-BZ
LED Wall Pack Lights
LED Full Cutoff Wall Packs
Architectural LED Wall Pack Light
LED Half Round Wall Light
LL-WPHRUD-40-50-UNV-BZ
LL-WPHRUD-40-40-UNV-BZ
LED Wall Pack Lights
LED Full Cutoff Wall Packs
Architectural LED Wall Pack Light
LED Half Round Wall Light
Lumens
- 3945 Lm
- 6056 Lm
- 7101 Lm
- 10258 Lm
Watts
- 25 w
- 40 w
- 45 w
- 65 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- Gray
- White
Controls Options
- Occupancy Sensor
- Photocell
Dimming Protocol
- 0-10 V
Efficacy
- 157 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Glass
Mounting
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Exterior
- FCC
- IP65
- RoHS
- Title 20
- Title 24
- Wet
Shape
- Curve
- Round
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
