LED Area Light Slim Series

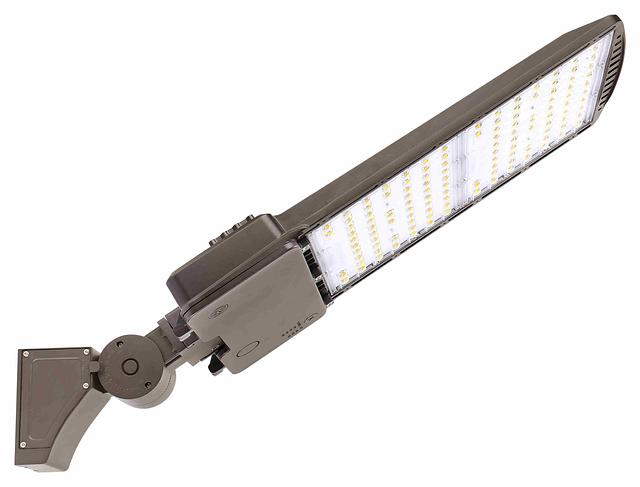

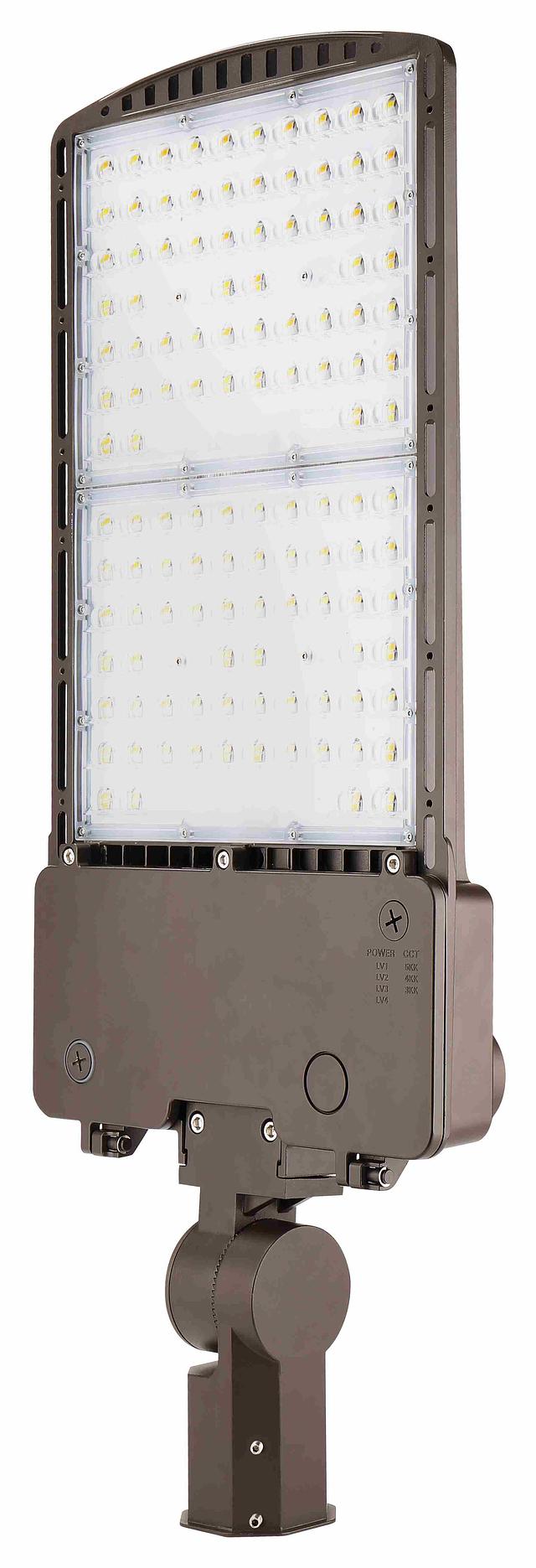

The LITELUME™ Area Light Slim Series Luminaire (LL-ALSL) combines style, performance and competitiveness. Featuring a rugged one piece diecast aluminum housing with outstanding corrosion protection, and secondary UV resistant polycarbonate optics. Compact in design low profile 3G vibration rated. Wattage and CCT Selectable with many accessories to customize. The ALSL provides an aesthetically pleasing addition to any roadway or parking lot with its steady well defined construction. The highly functioning optics provide maximum lumen output and light distribution to make the ALSL the premier outdoor area light
Resources
Photometry
- LL-ALSL-[40][60][80][100]-3CCT-UNV-T2.zip
- LL-ALSL-[60][90][120][140]-3CCT-UNV-T2.zip
- LL-ALSL-[72][108][144][180]-3CCT-UNV-T2.zip
- LL-ALSL-[100][150][200][250]-3CCT-UNV-T2.zip
- LL-ALSL-[120][180][240][300]-3CCT-UNV-T2.zip
- LL-ALSL-[300][320][360][400]-2CCT-UNV-T2-.zip
- LL-ALSL-[40][60][80][100]-3CCT-UNV-T3.zip
- LL-ALSL-[60][90][120][140]-3CCT-UNV-T3.zip
- LL-ALSL-[72][108][144][180]-3CCT-UNV-T3.zip
- LL-ALSL-[100][150][200][250]-3CCT-UNV-T3.zip
- LL-ALSL-[120][180][240][300]-3CCT-UNV-T3.zip
- LL-ALSL-[300][320][360][400]-2CCT-UNV-T3.zip
- LL-ALSL-[40][60][80][100]-3CCT-UNV-T4.zip
- LL-ALSL-[60][90][120][140]-3CCT-UNV-T4.zip
- LL-ALSL-[72][108][144][180]-3CCT-UNV-T4.zip
- LL-ALSL-[100][150][200][250]-3CCT-UNV-T4.zip
- LL-ALSL-[120][180][240][300]-3CCT-UNV-T4-.zip
- LL-ALSL-[300][320][360][400]-2CCT-UNV-T4-.zip
- LL-ALSL-[40][60][80][100]-3CCT-UNV-T5.zip
- LL-ALSL-140-3K-T3- EGSALSL.ies
QuickShip Ordering Information (Stocked in Portland, OR)
LL-ALSL-[40][60][80][100]-3CCT-UNV-T3-BZ-ANT-5-4B
LL-ALSL-[40][60][80][100]-3CCT-UNV-T3-BZ-ANT-5-4B
Lumens
- 7000 Lm
- 10000 Lm
- 10600 Lm
- 12500 Lm
- 13000 Lm
- 15500 Lm
- 15800 Lm
- 17000 Lm
- 18000 Lm
- 20000 Lm
- 21500 Lm
- 22500 Lm
- 23000 Lm
- 24500 Lm
- 27000 Lm
- 30000 Lm
- 31000 Lm
- 37000 Lm
- 38500 Lm
- 45000 Lm
- 46500 Lm
- 50500 Lm
- 55500 Lm
- 60800 Lm
Watts
- 40 w
- 60 w
- 72 w
- 80 w
- 90 w
- 100 w
- 108 w
- 120 w
- 140 w
- 144 w
- 150 w
- 180 w
- 240 w
- 250 w
- 300 w
- 320 w
- 360 w
- 400 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Gray
- White
Controls Options
- Motion Sensor
- Occupancy Sensor
- Photocell
Dimming Protocol
- 0-10 V
Distribution
- Type II
- Type III
- Type IV
- Type V
Efficacy
- 150 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Slip Fitter
- Trunnion
- Wall Mount
Ratings & Compliance
- DLC
- Dark Sky
- IP66
- TAA
- Title 24
- Wet
Voltage
- 120-277 V
- 347-480 V
- UNV
Warranty
- 10 yr

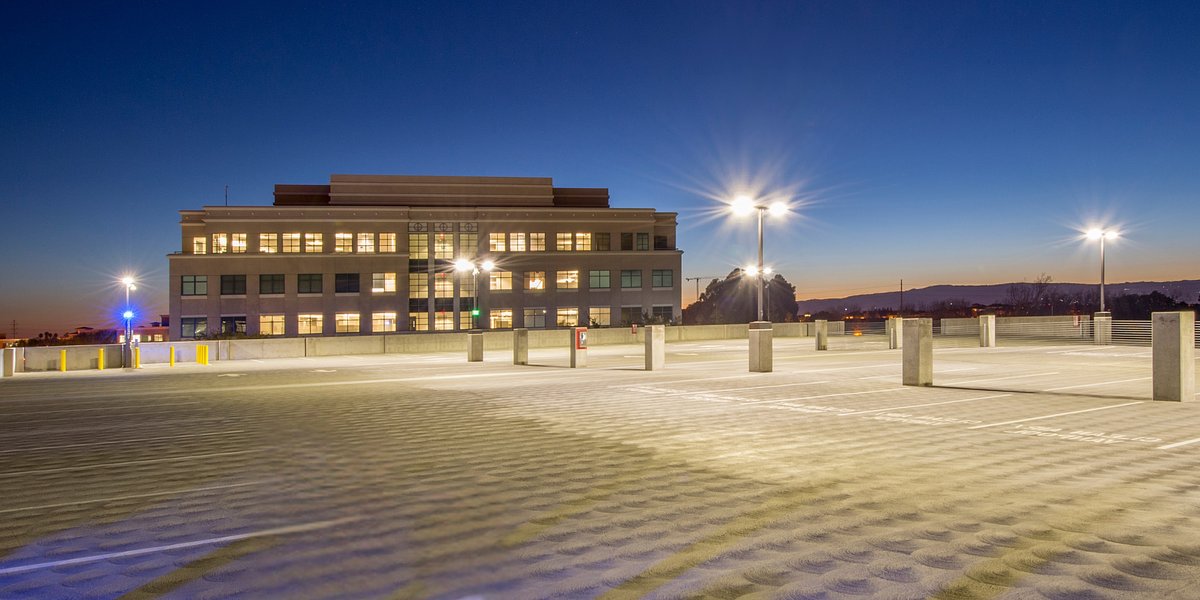

Inspiration
